Steel Bar Grating

Name: Steel Bar Grating
Brand: Metals Depot
Price: 37.00 USD
Availability: InStock

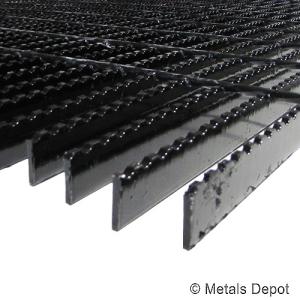

Steel Bar Grating, also known as Welded Steel Bar Grate is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel Bar Grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements. Ideally suited for Walkways, Mezzanines, Stair Landings, Stair Step Treads, Trailer Flooring, Bridge Platforms, Trench Grates, Drain Covers and more. Available in either smooth top or serrated for added slip resistance. Metals Depot stocks a huge assortment steel bar grating sizes that you can buy online in precut or mill sizes or you can order just what you need custom Cut to Size in small or large quantity at wholesale prices. Note: Bearing bars run the length of panels. Stock sizes of bar grating are saw cut to length with open ends - they are not banded. Custom Sizes are also available on request.

*Also available: Galvanized Bar Grating, Aluminum Bar Grating and Stainless Bar Grating.

For ready to ship premade Trench Grates Click Here!

SPECIFICATIONS:

ASTM A569, A36 Welded Steel

AVAILABLE FINISHES:

Bare Steel, Black Primer Paint, or Galvanized

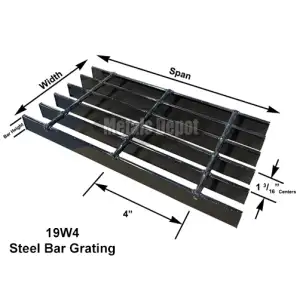

19W4 - STANDARD & (HD) HEAVY DUTY:

Bearing Bar Spacing: 1-3/16 inch on center
Cross Bar Spacing: 4 inch on center
Opening Area: 1" X 3-3/4" (77%)

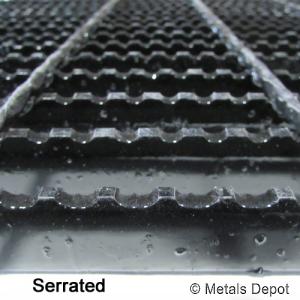

Surface: Smooth or Serrated

11W4 - STANDARD DUTY (ADA Compliant)

Bearing Bar Spacing: 11/16 inch on center
Cross Bar Spacing: 4 inch centers
Opening Area: 1/2" x 3-3/4" (70%) (ADA Compliant)
Surface: Smooth or Serrated

AVAILABLE SIZES:

Sold by Linear Foot in 24" and 36" wide panels
*Custom Sizes & End Banding Available on Request

HOW TO MEASURE:

Bearing Bar Size: Thickness X Height (i.e. 3/16" x 1")
Panel Size: Width X Length (span)

About

SPECIFICATIONS:

ASTM A569, A36 Welded Steel

AVAILABLE FINISHES:

Bare Steel, Black Primer Paint, or Galvanized

19W4 - STANDARD & (HD) HEAVY DUTY:

Bearing Bar Spacing: 1-3/16 inch on center
Cross Bar Spacing: 4 inch on center
Opening Area: 1" X 3-3/4" (77%)
Surface: Smooth or Serrated

11W4 - STANDARD DUTY (ADA Compliant)

Bearing Bar Spacing: 11/16 inch on center
Cross Bar Spacing: 4 inch centers
Opening Area: 1/2" x 3-3/4" (70%) (ADA Compliant)
Surface: Smooth or Serrated

AVAILABLE SIZES:

Sold by Linear Foot in 24" and 36" wide panels
*Custom Sizes & End Banding Available on Request

HOW TO MEASURE:

Bearing Bar Size: Thickness X Height (i.e. 3/16" x 1")
Panel Size: Width X Length (span)

Load Tables

Product Info

Tolerances

California Residents Warning!

Filter By:

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock #

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

G1181 1/8" x 1" - 19W4 - SMOOTH - 2FT
Steel Bar Grating - Painted Black - 24" Wide

G1181

1/8" x 1" - 19W4 - SMOOTH - 2FT
Steel Bar Grating - Painted Black - 24" Wide

5.10 lb/sqft

Select a Size 0.00

Weight: 5.10 lb/sqft
