Aluminum Beam

Aluminum Beams

Aluminum Beam, aka Structural Aluminum I Beam is an extruded aluminum product with inside radius corners that is intended for all structural applications where greater strength is required. 6061 Aluminum Beams are widely used for all types of fabrication projects where lightweight and corrosion resistance is a concern - frame work, rails, overhead support, trolleys, supports, trailers, truck beds, etc. Metals Depot stocks hundreds of sizes of aluminum beams that you can buy online in ready to ship precut or mill lengths or order just what you need custom Cut to Size in small or large quantity at wholesale prices. Available in (AA) Aluminum Association and (AS) American Standard profiles. Provided in raw mill finish, not intended for cosmetic applications.

About

SPECIFICATIONS:

6061-T6; ASTM B308; AMS-QQ-A-200/8

FINISH:

Extruded Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 45 ksi; Yield Point = 40 ksi
Shear Strength = 30 ksi; Elasticity = 10 ksi
Elongation in 2" = 17%; Fatigue Limit = 14 ksi
Brinell Hardness = 95; Melting Point = 1220F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 12ft, 25ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

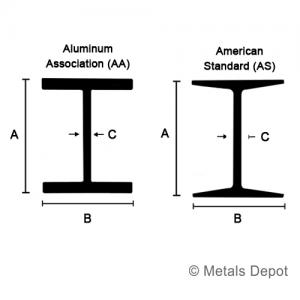

HOW TO MEASURE:

Height (A) X Flange (B) X Web (C) X Length
* Dimensions in Inches

About

SPECIFICATIONS:

6061-T6; ASTM B308; AMS-QQ-A-200/8

FINISH:

Extruded Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 45 ksi; Yield Point = 40 ksi
Shear Strength = 30 ksi; Elasticity = 10 ksi
Elongation in 2" = 17%; Fatigue Limit = 14 ksi
Brinell Hardness = 95; Melting Point = 1220F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 12ft, 25ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Height (A) X Flange (B) X Web (C) X Length
* Dimensions in Inches

California Residents Warning!

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

B33170 3" X 2.33" X .170" web
6061-T6 Aluminum I Beam - AS

B33170

3" X 2.33" X .170" web
6061-T6 Aluminum I Beam - AS

2.00 lb

Select a Size 0.00

Weight: 2.00 lb/ft

B33150 3" X 2.50" X .150" web
6061-T6 Aluminum I Beam - AA

B33150

3" X 2.50" X .150" web
6061-T6 Aluminum I Beam - AA

2.10 lb

Select a Size 0.00

Weight: 2.10 lb/ft

B33349 3" X 2.50" X .349" web
6061-T6 Aluminum I Beam - AS

B33349

3" X 2.50" X .349" web
6061-T6 Aluminum I Beam - AS

2.60 lb

Select a Size 0.00

Weight: 2.60 lb/ft

B34190 4" X 2.66" X .190" web
6061-T6 Aluminum I Beam - AS

B34190

4" X 2.66" X .190" web
6061-T6 Aluminum I Beam - AS

2.70 lb

Select a Size 0.00

Weight: 2.70 lb/ft

B342796 4" X 2.80" X .326" web
6061-T6 Aluminum I Beam - AS

B342796

4" X 2.80" X .326" web
6061-T6 Aluminum I Beam - AS

3.30 lb

Select a Size 0.00

Weight: 3.30 lb/ft

B34170 4" X 3.00" X .170" web
6061-T6 Aluminum I Beam - AA

B34170

4" X 3.00" X .170" web
6061-T6 Aluminum I Beam - AA

2.80 lb

Select a Size 0.00

Weight: 2.80 lb/ft

B344313 4" X 4.00" X .313" web
6061-T6 Aluminum H Beam - AS

B344313

4" X 4.00" X .313" web
6061-T6 Aluminum H Beam - AS

4.76 lb

Select a Size 0.00

Weight: 4.76 lb/ft

B353210 5" X 3.00" X .210" web
6061-T6 Aluminum I Beam - AS

B353210

5" X 3.00" X .210" web
6061-T6 Aluminum I Beam - AS

3.44 lb

Select a Size 0.00

Weight: 3.44 lb/ft

B355313 5" X 5.00" X .313" web
6061-T6 Aluminum H Beam - AS

B355313

5" X 5.00" X .313" web
6061-T6 Aluminum H Beam - AS

6.48 lb

Select a Size 0.00

Weight: 6.48 lb/ft

B36190 6" X 4.00" X .190" web
6061-T6 Aluminum I Beam - AA

B36190

6" X 4.00" X .190" web
6061-T6 Aluminum I Beam - AA

4.10 lb

Select a Size 0.00

Weight: 4.10 lb/ft

B364210 6" X 4.00" X .210" web
6061-T6 Aluminum I Beam - AA

B364210

6" X 4.00" X .210" web
6061-T6 Aluminum I Beam - AA

5.41 lb

Select a Size 0.00

Weight: 5.41 lb/ft

B364230 6" X 4.00" X .230" web
6061-T6 Aluminum H Beam - Wide Flange

B364230

6" X 4.00" X .230" web
6061-T6 Aluminum H Beam - Wide Flange

8.32 lb

Select a Size 0.00

Weight: 8.32 lb/ft

B36230 6" X 3.33" X .230" web
6061-T6 Aluminum I Beam - AS

B36230

6" X 3.33" X .230" web
6061-T6 Aluminum I Beam - AS

4.32 lb

Select a Size 0.00

Weight: 4.32 lb/ft

B366240 6" X 6.00" X .240" web
6061-T6 Aluminum H Beam - Wide Flange

B366240

6" X 6.00" X .240" web
6061-T6 Aluminum H Beam - Wide Flange

5.40 lb

Select a Size 0.00

Weight: 5.40 lb/ft

B36343 6" X 3.443" X .343" web
6061-T6 Aluminum I Beam - AS

B36343

6" X 3.443" X .343" web
6061-T6 Aluminum I Beam - AS

5.12 lb

Select a Size 0.00

Weight: 5.12 lb/ft

B38270 8" X 4.00" X .270" web
6061-T6 Aluminum I Beam - AS

B38270

8" X 4.00" X .270" web
6061-T6 Aluminum I Beam - AS

6.35 lb

Select a Size 0.00

Weight: 6.35 lb/ft

B38230 8" X 5.00" X .230" web
6061-T6 Aluminum I Beam - AA

B38230

8" X 5.00" X .230" web
6061-T6 Aluminum I Beam - AA

6.20 lb

Select a Size 0.00

Weight: 6.20 lb/ft

B385250 8" X 5.00" X .250" web
6061-T6 Aluminum I Beam - AA

B385250

8" X 5.00" X .250" web
6061-T6 Aluminum I Beam - AA

7.04 lb

Select a Size 0.00

Weight: 7.04 lb/ft

B388288 8" X 8.00" X .288" web
6061-T6 Aluminum H Beam - Wide Flange

B388288

8" X 8.00" X .288" web
6061-T6 Aluminum H Beam - Wide Flange

10.72 lb

Select a Size 0.00

Weight: 10.72 lb/ft

B310310 10" X 4.66" X .310" web
6061-T6 Aluminum I Beam - AS

B310310

10" X 4.66" X .310" web
6061-T6 Aluminum I Beam - AS

9.00 lb

Select a Size 0.00

Weight: 9.00 lb/ft

B310250 10" X 6.00" X .250" web
6061-T6 Aluminum I Beam - AA

B310250

10" X 6.00" X .250" web
6061-T6 Aluminum I Beam - AA

8.70 lb

Select a Size 0.00

Weight: 8.70 lb/ft

B3106290 10" X 6.00" X .290" web
6061-T6 Aluminum I Beam - AA

B3106290

10" X 6.00" X .290" web
6061-T6 Aluminum I Beam - AA

10.28 lb

Select a Size 0.00

Weight: 10.28 lb/ft

B312350 12" X 5.00" X .350" web
6061-T6 Aluminum I Beam - AS

B312350

12" X 5.00" X .350" web
6061-T6 Aluminum I Beam - AS

11.00 lb

Select a Size 0.00

Weight: 11.00 lb/ft

B312290 12" X 7.00" X .290" web
6061-T6 Aluminum I Beam - AA

B312290

12" X 7.00" X .290" web
6061-T6 Aluminum I Beam - AA

12.00 lb

Select a Size 0.00

Weight: 12.00 lb/ft

B312310 12" X 7.00" X .310" web
6061-T6 Aluminum I Beam - AA

B312310

12" X 7.00" X .310" web
6061-T6 Aluminum I Beam - AA

14.29 lb

Select a Size 0.00

Weight: 14.29 lb/ft
