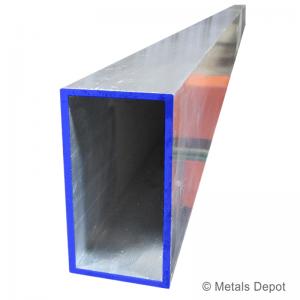

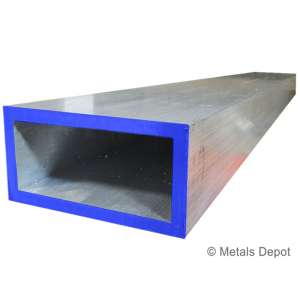

Aluminum Rectangle Tube

Aluminum Rectangle Tube, is an extruded aluminum tube that is widely used for all types of fabrication projects where lightweight and corrosion resistance is a primary concern - frame work, support columns, gates, fencing, handrails, etc. Rectangle Aluminum Tube has square corners inside and outside, with no weld seam. Available in both 6061-T6 and 6063-T52, with the 6063 square tube being more formable than the stronger grade 6061 square tube. Metals Depot stocks hundreds of sizes of aluminum rectangle tube that you can buy online in ready to ship precut or mill lengths or order just what you need Cut to Size in small or large quantity at wholesale prices. Aluminum structural tube is provided in raw mill finish and not intended for cosmetic applications as is. Some scratches or scuffs may be present.

Need Aluminum Square Tube? Click Here

About

SPECIFICATIONS:

6063-T52; 6061-T6; ASTM B221

FINISH:

Extruded Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Fair
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 27 ksi (6063); 45 ksi (6061)
Yield Strength = 21 ksi (6063); 40 ksi (6061)
Elongation in 2" = 18% (6063); 17% (6061)
Brinell Hardness = 60 (6063); 95 (6061)
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 10ft, 12ft, 21ft, 24ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

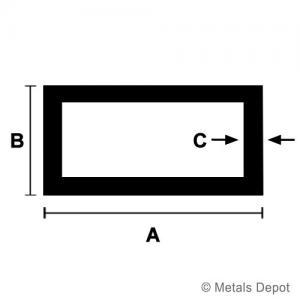

HOW TO MEASURE:

Height (A) X Width (B) X Wall (C) X Length
* Dimensions in Inches

About

SPECIFICATIONS:

6063-T52; 6061-T6; ASTM B221

FINISH:

Extruded Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Fair
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 27 ksi (6063); 45 ksi (6061)
Yield Strength = 21 ksi (6063); 40 ksi (6061)
Elongation in 2" = 18% (6063); 17% (6061)
Brinell Hardness = 60 (6063); 95 (6061)
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 10ft, 12ft, 21ft, 24ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Height (A) X Width (B) X Wall (C) X Length
* Dimensions in Inches

California Residents Warning!

Filter By:

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock #

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

T3111218 1" x 1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T3111218

1" x 1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

0.40 lb/ft

Select a Size 0.00

Weight: 0.40 lb/ft

T31123418 1-1/2" x 3/4" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T31123418

1-1/2" x 3/4" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

0.65 lb/ft

Select a Size 0.00

Weight: 0.65 lb/ft

T31121116 1-1/2" x 1" x 1/16" wall
6061-T6 Aluminum Rectangle Tube

T31121116

1-1/2" x 1" x 1/16" wall
6061-T6 Aluminum Rectangle Tube

0.36 lb/ft

Select a Size 0.00

Weight: 0.36 lb/ft

T3112118 1-1/2" x 1" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T3112118

1-1/2" x 1" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

0.70 lb/ft

Select a Size 0.00

Weight: 0.70 lb/ft

T321116 2" x 1" x 1/16" wall
6063-T52 Aluminum Rectangle Tube

T321116

2" x 1" x 1/16" wall
6063-T52 Aluminum Rectangle Tube

0.50 lb/ft

Select a Size 0.00

Weight: 0.50 lb/ft

T32118 2" x 1" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T32118

2" x 1" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

0.82 lb/ft

Select a Size 0.00

Weight: 0.82 lb/ft

T32118-6061 2" x 1" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T32118-6061

2" x 1" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

0.82 lb/ft

Select a Size 0.00

Weight: 0.82 lb/ft

T3211218 2" x 1-1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T3211218

2" x 1-1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.00 lb/ft

Select a Size 0.00

Weight: 1.00 lb/ft

T321211418 2-1/2" x 1-1/4" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T321211418

2-1/2" x 1-1/4" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.00 lb/ft

Select a Size 0.00

Weight: 1.00 lb/ft

T321211218 2-1/2" x 1-1/2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T321211218

2-1/2" x 1-1/2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.12 lb/ft

Select a Size 0.00

Weight: 1.12 lb/ft

T33118 3" x 1" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T33118

3" x 1" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.10 lb/ft

Select a Size 0.00

Weight: 1.10 lb/ft

T331125-6061 3" x 1" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T331125-6061

3" x 1" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.12 lb/ft

Select a Size 0.00

Weight: 1.12 lb/ft

T3311218 3" x 1-1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T3311218

3" x 1-1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.25 lb/ft

Select a Size 0.00

Weight: 1.25 lb/ft

T3311218-6061 3" x 1-1/2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T3311218-6061

3" x 1-1/2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.25 lb/ft

Select a Size 0.00

Weight: 1.25 lb/ft

T33112316 3" x 1-1/2" x 3/16" wall
6061-T6 Aluminum Rectangle Tube

T33112316

3" x 1-1/2" x 3/16" wall
6061-T6 Aluminum Rectangle Tube

1.90 lb/ft

Select a Size 0.00

Weight: 1.90 lb/ft

T33134125 3" x 1-3/4" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T33134125

3" x 1-3/4" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.35 lb/ft

Select a Size 0.00

Weight: 1.35 lb/ft

T33218 3" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T33218

3" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.40 lb/ft

Select a Size 0.00

Weight: 1.40 lb/ft

T33218-6061 3" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T33218-6061

3" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.40 lb/ft

Select a Size 0.00

Weight: 1.40 lb/ft

T33214 3" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T33214

3" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

2.65 lb/ft

Select a Size 0.00

Weight: 2.65 lb/ft

T34118 4" x 1" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T34118

4" x 1" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.50 lb/ft

Select a Size 0.00

Weight: 1.50 lb/ft

T3411218 4" x 1-1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T3411218

4" x 1-1/2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.55 lb/ft

Select a Size 0.00

Weight: 1.55 lb/ft

T3413418 4" x 1-3/4" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T3413418

4" x 1-3/4" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.62 lb/ft

Select a Size 0.00

Weight: 1.62 lb/ft

T34218 4" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T34218

4" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

1.69 lb/ft

Select a Size 0.00

Weight: 1.69 lb/ft

T34218-6061 4" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T34218-6061

4" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

1.68 lb/ft

Select a Size 0.00

Weight: 1.68 lb/ft

T34214 4" x 2" x 1/4" wall
6063-T52 Aluminum Rectangle Tube

T34214

4" x 2" x 1/4" wall
6063-T52 Aluminum Rectangle Tube

3.50 lb/ft

Select a Size 0.00

Weight: 3.50 lb/ft

T34214-6061 4" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T34214-6061

4" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

3.50 lb/ft

Select a Size 0.00

Weight: 3.50 lb/ft

T34318 4" x 3" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T34318

4" x 3" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

2.00 lb/ft

Select a Size 0.00

Weight: 2.00 lb/ft

T34314 4" x 3" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T34314

4" x 3" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

3.84 lb/ft

Select a Size 0.00

Weight: 3.84 lb/ft

T35218 5" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T35218

5" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

2.34 lb/ft

Select a Size 0.00

Weight: 2.34 lb/ft

T352316 5" x 2" x 3/16" wall
6063-T52 Aluminum Rectangle Tube

T352316

5" x 2" x 3/16" wall
6063-T52 Aluminum Rectangle Tube

2.96 lb/ft

Select a Size 0.00

Weight: 2.96 lb/ft

T35318 5" x 3" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T35318

5" x 3" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

2.34 lb/ft

Select a Size 0.00

Weight: 2.34 lb/ft

T35314 5" x 3" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T35314

5" x 3" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

4.50 lb/ft

Select a Size 0.00

Weight: 4.50 lb/ft

T36218 6" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

T36218

6" x 2" x 1/8" wall
6061-T6 Aluminum Rectangle Tube

2.40 lb/ft

Select a Size 0.00

Weight: 2.40 lb/ft

T36218-6063 6" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T36218-6063

6" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

2.40 lb/ft

Select a Size 0.00

Weight: 2.40 lb/ft

T36214 6" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T36214

6" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

4.50 lb/ft

Select a Size 0.00

Weight: 4.50 lb/ft

T363316 6" x 3" x 3/16" wall
6061-T6 Aluminum Rectangle Tube

T363316

6" x 3" x 3/16" wall
6061-T6 Aluminum Rectangle Tube

3.82 lb/ft

Select a Size 0.00

Weight: 3.82 lb/ft

T36414 6" x 4" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T36414

6" x 4" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

6.00 lb/ft

Select a Size 0.00

Weight: 6.00 lb/ft

T36412 6" x 4" x 1/2" wall
6061-T6 Aluminum Rectangle Tube

T36412

6" x 4" x 1/2" wall
6061-T6 Aluminum Rectangle Tube

10.80 lb/ft

Select a Size 0.00

Weight: 10.80 lb/ft

T38218 8" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

T38218

8" x 2" x 1/8" wall
6063-T52 Aluminum Rectangle Tube

2.90 lb/ft

Select a Size 0.00

Weight: 2.90 lb/ft

T38214 8" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T38214

8" x 2" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

5.80 lb/ft

Select a Size 0.00

Weight: 5.80 lb/ft

T38314 8" x 3" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T38314

8" x 3" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

6.17 lb/ft

Select a Size 0.00

Weight: 6.17 lb/ft

T38414 8" x 4" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

T38414

8" x 4" x 1/4" wall
6061-T6 Aluminum Rectangle Tube

6.80 lb/ft

Select a Size 0.00

Weight: 6.80 lb/ft

T38638 8" x 6" x 3/8" wall
6061-T6 Aluminum Rectangle Tube

T38638

8" x 6" x 3/8" wall
6061-T6 Aluminum Rectangle Tube

11.69 lb/ft

Select a Size 0.00

Weight: 11.69 lb/ft
