260 Brass Sheet & Plate

Name: Brass Sheet & Plate - 260
Brand: Metals Depot

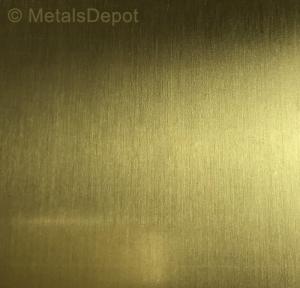

260 Brass Sheet & Plate, aka cartridge brass or yellow brass is the most popular and economical of the brass alloys. Brass Sheet & Plate offers good corrosion resistance to many chemical corrodents as well as industrial atmospheres and marine environments. Brass sheet products are a soft, ductile metal that brazes, cuts and machines easily. Used widely for decorative purposes because of its smooth, shiny gold-like appearance, brass sheets are relative simple to polish to a high luster with minimal effort. Metals Depot stocks hundreds of sizes of 260 Brass Sheet & Plate that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size.

SPECIFICATIONS:

C26000, C260, ASTM B19, ASTM B36

FINISH:

Standard Mill Finish, Not Polished

CHARACTERISTICS:

Brazing = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Poor
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 62 ksi; Yield Point = 52 ksi
Temper = H02 1/2 hard; Elasticity = 16,000 ksi
Elongation in 2" = 25%; Machinability = 30%
Rockwell = HRB70; Melting Point = 1750F
*Data provided for reference only

AVAILABLE SIZES:

1x1, 1x2, 1x3, 2x2, 2x3, 3ft x 8ft or Custom Cut
Standard Size Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

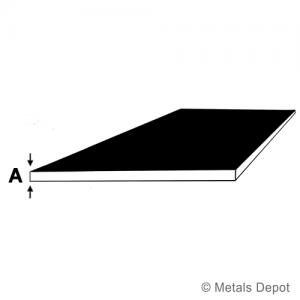

HOW TO MEASURE:

Thickness (A) X Width X Length
* Dimensions in Inches

Thickness Tolerance for 260 Brass Sheet
over .021 to .026" = .003" +/-
over .026 to .037" = .004" +/-
over .037 to .050" = .005" +/-
over .050 to .073" = .006" +/-
over .073 to .130" = .007" +/-
over .130 to .205" = .008" +/-
over .205 to .300" = .010" +/-
over .300 to .500" = .013" +/-

Typical Chemistry for 260 Brass Sheet & Plate

Copper = 68.5 - 71.5%
Iron = .05% max
Lead = .07%
Zinc = 30%

Applications of 260 Brass Sheet & Plate

heater cores, radiators, thermostats, electrical components, finished hardware, kick plates, decorative trim and hardware, hinges, artwork, bridle name plates, costume jewerly, ammunition cartridge cases, and much more

* Sold in standard mill finish and not intended for cosmetic applications
but can be polished to desired luster with relative ease.

About

SPECIFICATIONS:

C26000, C260, ASTM B19, ASTM B36

FINISH:

Standard Mill Finish, Not Polished

CHARACTERISTICS:

Brazing = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Poor
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

AVAILABLE SIZES:

1x1, 1x2, 1x3, 2x2, 2x3, 3ft x 8ft or Custom Cut
Standard Size Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Thickness (A) X Width X Length
* Dimensions in Inches

Tolerances

Chemistry

Typical Chemistry for 260 Brass Sheet & Plate

Copper = 68.5 - 71.5%
Iron = .05% max
Lead = .07%
Zinc = 30%

Applications

Applications of 260 Brass Sheet & Plate

* Sold in standard mill finish and not intended for cosmetic applications
but can be polished to desired luster with relative ease.

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight
(lbs. / ft.)

Click! Arrow
to select Size

Qty

Price

Select Item

BRSH032 .032 (1/32") thick
Alloy 260 Brass Sheet

BRSH032

.032 (1/32") thick
Alloy 260 Brass Sheet

1.44 lb

Select a Size $0.00

1.44 lb/ft

Add To Cart

BRSH064 .063 (1/16") thick
Alloy 260 Brass Sheet

BRSH064

.063 (1/16") thick
Alloy 260 Brass Sheet

2.88 lb

Select a Size $0.00

2.88 lb/ft

Add To Cart

BRSH125 .125 (1/8") thick
Alloy 260 Brass Sheet

BRSH125

.125 (1/8") thick
Alloy 260 Brass Sheet

5.76 lb

Select a Size $0.00

5.76 lb/ft

Add To Cart

BRP316 .1875 (3/16") thick
Alloy 260 Brass Plate

BRP316

.1875 (3/16") thick
Alloy 260 Brass Plate

8.64 lb

Select a Size $0.00

8.64 lb/ft

Add To Cart

BRP250 .250 (1/4") thick
Alloy 260 Brass Plate

BRP250

.250 (1/4") thick
Alloy 260 Brass Plate

11.52 lb

Select a Size $0.00

11.52 lb/ft

Add To Cart
