360 Brass Square Bar

Name: Brass Square Bar
Brand: Metals Depot

360 Brass Square, half hard temper, aka free machining brass square is is a soft, ductile metal that machines quite easily with a machinability rating of 100%. 360 Brass Square is ideally suited for applications where strength, good corrosion resistance, electrical conductivity, and non-sparking characteristics are important. Used widely for decorative purposes because of its smooth, shiny gold-like appearance, brass squares are relative easy to polish to a desired luster with minimal effort. Metals Depot stocks hundreds of sizes of 360 Brass Squares that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size. Sold only in unpolished mill finish.

SPECIFICATIONS:

C36000, CDA 360, ASTM B16, AMS 4610

FINISH:

Standard Mill Finish, Not Polished

CHARACTERISTICS:

Brazing = Good
Machining / Grinding = Excellent
Bending / Forming = Good
Wear Resistance = Fair
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 58 ksi; Yield Point = 45 ksi
Temper = 1/2 hard; Elasticity = 14,000 ksi
Elongation in 2" = 25%; Machinability = 100%
Rockwell = HRB78; Melting Point = 1630F
*Data provided for reference only

AVAILABLE LENGTHS:

1ft, 2ft, 4ft, 6ft, 12ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

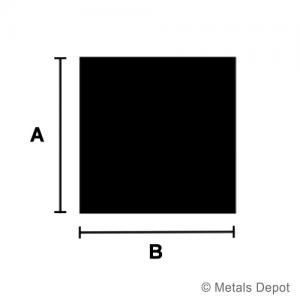

HOW TO MEASURE:

Thickness (A) X Width (B) X Length
* Dimensions in Inches

Thickness & Width Tolerance for 360 Brass Square
1/16" to 1/8" = .003" +/- max
over 1/8" to 3/16" = .004" +/- max
over 3/16" to 2" = .008" +/- max
over 2" = 30% +/- max

Straightness Tolerance for 360 Brass Square
1/2" maximum bow edgewise curvature (depth arc) in any 6ft portion of the total length

Typical Chemistry for 360 Brass Square

Copper = 61.5%
Iron = .35% max
Lead = 3.1%
Zinc = 35.4%

Applications of 360 Brass Square

machined parts, axels. shafts, fixtures, jigs, molds, bases, molding, trim, marine parts, thermostat parts, latches, gauges, and much more

* Sold in standard mill finish and not intended for cosmetic applications
but can be polished to desired luster with relative ease.

About

SPECIFICATIONS:

C36000, CDA 360, ASTM B16, AMS 4610

FINISH:

Standard Mill Finish, Not Polished

CHARACTERISTICS:

Brazing = Good
Machining / Grinding = Excellent
Bending / Forming = Good
Wear Resistance = Fair
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

AVAILABLE LENGTHS:

1ft, 2ft, 4ft, 6ft, 12ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Thickness (A) X Width (B) X Length
* Dimensions in Inches

Tolerances

Thickness & Width Tolerance for 360 Brass Square
1/16" to 1/8" = .003" +/- max
over 1/8" to 3/16" = .004" +/- max
over 3/16" to 2" = .008" +/- max
over 2" = 30% +/- max

Straightness Tolerance for 360 Brass Square
1/2" maximum bow edgewise curvature (depth arc) in any 6ft portion of the total length

Chemistry

Typical Chemistry for 360 Brass Square

Copper = 61.5%
Iron = .35% max
Lead = 3.1%
Zinc = 35.4%

Applications

Applications of 360 Brass Square

machined parts, axels. shafts, fixtures, jigs, molds, bases, molding, trim, marine parts, thermostat parts, latches, gauges, and much more

* Sold in standard mill finish and not intended for cosmetic applications
but can be polished to desired luster with relative ease.

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight
(lbs. / ft.)

Click! Arrow
to select Size

Qty

Price

Select Item

BSQ18 1/8 X 1/8
Alloy 360 Brass Square

BSQ18

1/8 X 1/8
Alloy 360 Brass Square

0.06 lb

Select a Size$0.00

0.06 lb/ft

Add To Cart

BSQ316 3/16 X 3/16
Alloy 360 Brass Square

BSQ316

3/16 X 3/16
Alloy 360 Brass Square

0.13 lb

Select a Size$0.00

0.13 lb/ft

Add To Cart

BSQ14 1/4 X 1/4
Alloy 360 Brass Square

BSQ14

1/4 X 1/4
Alloy 360 Brass Square

0.23 lb

Select a Size$0.00

0.23 lb/ft

Add To Cart

BSQ516 5/16 X 5/16
Alloy 360 Brass Square

BSQ516

5/16 X 5/16
Alloy 360 Brass Square

0.36 lb

Select a Size$0.00

0.36 lb/ft

Add To Cart

BSQ38 3/8 X 3/8
Alloy 360 Brass Square

BSQ38

3/8 X 3/8
Alloy 360 Brass Square

0.52 lb

Select a Size$0.00

0.52 lb/ft

Add To Cart

BSQ716 7/16 x 7/16
Alloy 360 Brass Square

BSQ716

7/16 x 7/16
Alloy 360 Brass Square

0.80 lb

Select a Size$0.00

0.80 lb/ft

Add To Cart

BRSQ12 1/2 X 1/2
Alloy 360 Brass Square

BRSQ12

1/2 X 1/2
Alloy 360 Brass Square

1.00 lb

Select a Size$0.00

1.00 lb/ft

Add To Cart

BRSQ58 5/8 X 5/8
Alloy 360 Brass Square

BRSQ58

5/8 X 5/8
Alloy 360 Brass Square

1.44 lb

Select a Size$0.00

1.44 lb/ft

Add To Cart

BRSQ34 3/4 X 3/4
Alloy 360 Brass Square

BRSQ34

3/4 X 3/4
Alloy 360 Brass Square

2.08 lb

Select a Size$0.00

2.08 lb/ft

Add To Cart

BRSQ78 7/8 X 7/8
Alloy 360 Brass Square

BRSQ78

7/8 X 7/8
Alloy 360 Brass Square

2.83 lb

Select a Size$0.00

2.83 lb/ft

Add To Cart

BRSQ1 1 X 1
Alloy 360 Brass Square

BRSQ1

1 X 1
Alloy 360 Brass Square

3.69 lb

Select a Size$0.00

3.69 lb/ft

Add To Cart

BRSQ114 1-1/4 X 1-1/4
Alloy 360 Brass Square

BRSQ114

1-1/4 X 1-1/4
Alloy 360 Brass Square

5.76 lb

Select a Size$0.00

5.76 lb/ft

Add To Cart

BRSQ112 1-1/2 X 1-1/2
Alloy 360 Brass Square

BRSQ112

1-1/2 X 1-1/2
Alloy 360 Brass Square

8.29 lb

Select a Size$0.00

8.29 lb/ft

Add To Cart

BSQ2 2 X 2
Alloy 360 Brass Square

BSQ2

2 X 2
Alloy 360 Brass Square

14.74 lb

Select a Size$0.00

14.74 lb/ft

Add To Cart
