110 Copper Flat Bar

About

SPECIFICATIONS:
C11000, ASTM B187, H04 Hard

FINISH:
Mill Finish, Not Polished, Square Edge

CHARACTERISTICS:
Brazing / Soldering = Excellent
Machining / Grinding = Poor
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:
Tensile Strength = 48 ksi; Yield Point = 44 ksi
Temper = H04 Hard; Elasticity = 16,000 ksi
Elongation in 2" = 20%; Machinability = 20%
Rockwell = HRF84; Melting Point = 1981F
*Data provided for reference only

AVAILABLE SIZES:
1ft, 3ft, 6ft, 12ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

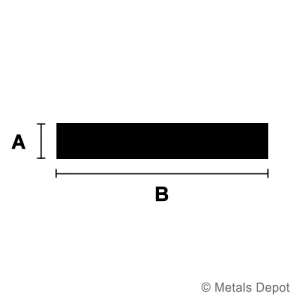

HOW TO MEASURE:
Thickness (A) X Width (B) X Length
* Dimensions in Inches



Tolerances


Thickness Tolerance for 110 Copper Flat
Up to .250" = .003" +/- max
.250" to .375" = .004" +/- max
.375" to .500" = .0045" +/- max
.500" to .750" = .006" +/- max
.750" to 1.00" = .007" +/- max
1.00" to 1.50" = .020" +/- max
1.50" to 2.00" = .024" +/- max

Width Tolerance for 110 Copper Flat
3/16" to 1/2" = .0035" +/-
over 1/2" to 1-1/4" = .005" +/-
over 1-1/4" to 2" = .008" +/-
over 2" to 4" = .012" +/-
over 4" to 12" = 30% +/-

Straightness Tolerance for 110 Copper Flat
1/2" maximum bow edgewise curvature (depth arc) in any 6ft portion of the total length

Applications


Applications of 110 Copper Flat Bar

architectural trim, bus bars, wire conductors, contacts, shims, teminals, electrical components, finished hardware, decorative trim and hardware, artwork, jewerly, and much more

* Sold in standard mill finish, not polished. Slight scuffs and scratches may be present.
