110 Copper Round Bar

About

SPECIFICATIONS:
C11000, ASTM B187, H04 Hard

FINISH:
Standard Mill Finish, Not Polished

CHARACTERISTICS:
Brazing / Soldering = Excellent
Machining / Grinding = Poor
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:
Tensile Strength = 48 ksi; Yield Point = 44 ksi
Temper = H04 Hard; Elasticity = 16,000 ksi
Elongation in 2" = 20%; Machinability = 20%
Rockwell = HRF84; Melting Point = 1981F
*Data provided for reference only

AVAILABLE SIZES:
3ft, 6ft, 12ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

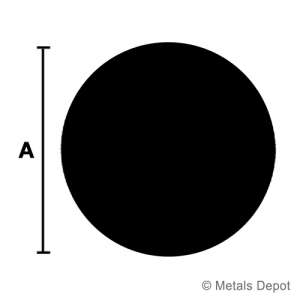

Diameter (A) X Length
* Dimensions in Inches

Tolerances


Diameter Tolerance for 110 Copper Rounds
Up to 3/16" = .0013" +/-
over 3/16" to 1/2" = .0015" +/-
over 1/2" to 1" = .0020" +/-
over 1" to 2" = .0025" +/-
over 2" = .15% +/-

Straightness Tolerance for 110 Copper Rounds
Maximum curvature (depth arc) in inches
under 2ft length = 1/32"
2ft to 5ft length = 1/32" in any 2ft portion
5ft to 10ft length = 1/8" in any 5ft portion
10ft length and over = 1/2" in any 10ft portion

Applications


Applications of 110 Copper Round Bar

architectural trim, bus bars, wire conductors, contacts, nails, pins, dowels, rivets, tacks, teminals, electrical components, finished hardware, decorative trim and hardware, artwork, jewerly, and much more

* Sold in standard mill finish, not polished. Slight scuffs and scratches may be present.

Select Size & Quantity to Add to Cart
CPR38 3/8" Dia.
C110 Copper Round
Add To Cart
CPR12 1/2" Dia.
C110 Copper Round
Add To Cart
CPR58 5/8" Dia.
C110 Copper Round
Add To Cart
CPR34 3/4" Dia.
C110 Copper Round
Add To Cart
CPR1 1" Dia.
C110 Copper Round
Add To Cart
CPR114 1-1/4" Dia.
C110 Copper Round
Add To Cart
CPR112 1-1/2" Dia.
C110 Copper Round
Add To Cart
CPR2 2" Dia.
C110 Copper Round
Add To Cart
CPR14 1/4" Dia.
C110 Copper Round
Add To Cart
