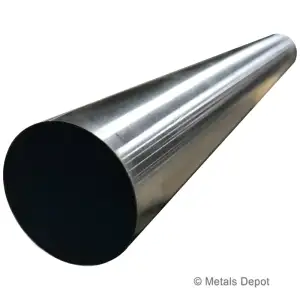

1045 TGP Precision Steel Round

Name: TGP Round Steel Shafting - 1045
Brand: Metals Depot

C1045 TGP Turned, Ground & Polished Round, is a medium carbon cold drawn steel round that has been ground and polished to a high degree of concentricity, surface perfection, straightness, and overall accuracy. Use C1045 TGP Precision Round when a higher degree of added strength, dimensional accuracy and straightness are required. Typical Diameter Tolerance = plus 0" / minus .001". Metals Depot stocks hundreds of sizes and lengths of 1045 Turn Ground and Polished Steel Shafting that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size in small or large quantity at wholesale prices.

SPECIFICATIONS:

AISI C1045; ASTM A108, A29; UNS G10450

FINISH:

Smooth, Turned, Ground & Polished

CHARACTERISTICS:

Welding = Fair
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:

Tensile Strength = 91 ksi; Yield Point = 77 ksi
Shear Strength = 11 ksi; Elasticity = 30 ksi
Elongation in 2" = 12%; Machinability = 60%
Brinell Hardness = 179; Melting Point = 2600F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 12ft, 24ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

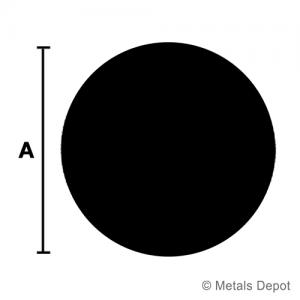

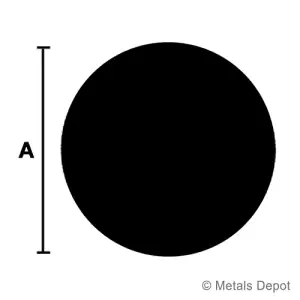

HOW TO MEASURE:

Diameter (A) X Length
* Dimensions in Inches

Diameter Tolerances for 1045 TGP Precision Round

Undersize Variations in Inches

Up thru 1-1/2" = .0010"
over 1-1/2" to 2-1/2" = .0015"
over 2-1/2" to 3" = .0020"
over 3" to 4" = .0030"
over 4" to 6" = .0040"
over 6" = .0050"

Straightness Tolerances for 1045 TGP Precision Round

Less than 5/8" Diameter = +/- 5/16" in 10ft
5/8" Diameter and over = +/- 3/16" in 10ft

Typical Chemistry for 1045 TGP Precision Round

Carbon: 0.42%-0.50%
Manganese: 0.60%-0.90%
Phosphorous: 0.04% (Max)
Sulfur: 0.05% (Max)

Applications of C1045 TGP Precision Round

shafts
gears
axles
studs
rolls
cranks
and much more

About

SPECIFICATIONS:

AISI C1045; ASTM A108, A29; UNS G10450

FINISH:

Smooth, Turned, Ground & Polished

CHARACTERISTICS:

Welding = Fair
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 12ft, 24ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Diameter (A) X Length
* Dimensions in Inches

Tolerances

Diameter Tolerances for 1045 TGP Precision Round

Undersize Variations in Inches

Up thru 1-1/2" = .0010"
over 1-1/2" to 2-1/2" = .0015"
over 2-1/2" to 3" = .0020"
over 3" to 4" = .0030"
over 4" to 6" = .0040"
over 6" = .0050"

Straightness Tolerances for 1045 TGP Precision Round

Less than 5/8" Diameter = +/- 5/16" in 10ft
5/8" Diameter and over = +/- 3/16" in 10ft

Chemistry

Typical Chemistry for 1045 TGP Precision Round

Carbon: 0.42%-0.50%
Manganese: 0.60%-0.90%
Phosphorous: 0.04% (Max)
Sulfur: 0.05% (Max)

Applications

Applications of C1045 TGP Precision Round

shafts
gears
axles
studs
rolls
cranks
and much more

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight
(lbs. / ft.)

Click! Arrow
to select Size

Qty

Price

Select Item

R212-TGP 1/2 inch Dia.
1045 Cold Drawn TGP - Precision Shafting

R212-TGP

1/2 inch Dia.
1045 Cold Drawn TGP - Precision Shafting

0.67 lb

Select a Size $0.00

0.67 lb/ft

Subtotal: $0.00
