1018 Cold Finished Flat

About

SPECIFICATIONS:
AISI 1018; ASTM A108; UNS G10180

FINISH:
Smooth, Oily Finish; Sharp Corners

CHARACTERISTICS:
Welding = Good
Machining / Grinding = Excellent
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:
Tensile Strength = 64 ksi; Yield Point = 54 ksi
Shear Strength = 11 ksi; Elasticity = 29 ksi
Elongation in 2" = 15%; Machinability = 70%
Brinell Hardness = 126; Melting Point = 2600F
*Data provided for reference only

AVAILABLE LENGTHS:
2ft, 4ft, 6ft, 10-12ft Randoms or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

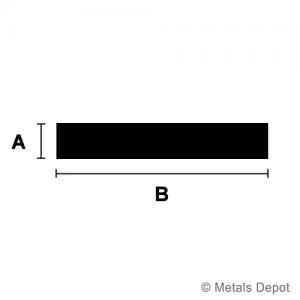

HOW TO MEASURE:
Thickness (A) X Width (B) X Length
* Dimensions in Inches

Tolerances



Tolerances for 1018 Cold Finished Flat

Undersize Variations in Inches for both Thickness & Width

Up thru 3/4" = .003"
over 3/4" to 1-1/2" = .004"
over 1-1/2" to 3" = .005"
over 3" to 4" = .006"
over 4" to 6" = .008"
over 6" = .013"

* No published tolerance for flatness or straightness available


Chemistry



Typical Chemistry for 1018 Cold Finished Flat

Carbon .15/.20
Manganese .60/.90
Phosphorus .04 (max.)
Sulfur .05 (max.)
Silicon .15/.35

Applications


Applications of C1018 Cold Finished Flat

brackets
motor mounts
fixtures
tooling
threaded parts
molds
and much more
