1018 Cold Finished Hexagon

About

SPECIFICATIONS:
AISI 1018; ASTM A108; UNS G10180

FINISH:
Smooth, Oily Finish; Sharp Corners

CHARACTERISTICS:
Welding = Good
Machining / Grinding = Excellent
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:
Tensile Strength = 64 ksi; Yield Point = 54 ksi
Shear Strength = 11 ksi; Elasticity = 29 ksi
Elongation in 2" = 15%; Machinability = 70%
Brinell Hardness = 126; Melting Point = 2600F
*Data provided for reference only

AVAILABLE LENGTHS:
2ft, 4ft, 6ft, 10-12ft Randoms or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

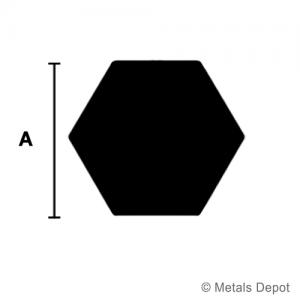

HOW TO MEASURE:
Thickness (A) X Width (B) X Length
* Dimensions in Inches

Tolerances


Tolerances for 1018 Cold Finished Hexagons

Undersize Variations in Diameter Inches

Up thru 3/4" = .002"
over 3/4" to 1-1/2" = .003"
over 1-1/2" to 2-1/2" = .004"
over 2-1/2" to 3-1/8" = .005"

Straightness Tolerances for 1018 Cold Finished Hexagons

Less than 5/8" x 5/8" = +/- 3/16" in 10ft
5/8" x 5/8" and over = +/- 1/8" in 10ft

Chemistry



Typical Chemistry for 1018 Cold Finished Hexagon

Carbon .15/.20
Manganese .60/.90
Phosphorus .04 (max.)
Sulfur .05 (max.)
Silicon .15/.35

Applications


Applications of C1018 Cold Finished Hexagon

shafts
axles
levelers
fixtures
tooling
hardware
adjustment blocks
and much more

Select Size & Quantity to Add to Cart
H214 1/4" Hex
C1018 Cold Finish Hexagon
Add To Cart
H2516 5/16" Hex
C1018 Cold Finish Hexagon
Add To Cart
H238 3/8" Hex
C1018 Cold Finish Hexagon
Add To Cart
H2716 7/16" Hex
C1018 Cold Finish Hexagon
Add To Cart
H212 1/2" Hex
C1018 Cold Finish Hexagon
Add To Cart
H258 5/8" Hex
C1018 Cold Finish Hexagon
Add To Cart
H234 3/4" Hex
C1018 Cold Finish Hexagon
Add To Cart
H278 7/8" Hex
C1018 Cold Finish Hexagon
Add To Cart
H21 1" Hex
C1018 Cold Finish Hexagon
Add To Cart
H22 2" Hex
C1018 Cold Finish Hexagon
Add To Cart
