1018 Cold Finished Round

About

SPECIFICATIONS:
AISI 1018; ASTM A108; UNS G10180

FINISH:
Smooth, Oily Finish

CHARACTERISTICS:
Welding = Good
Machining / Grinding = Excellent
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:
Tensile Strength = 64 ksi; Yield Point = 54 ksi
Shear Strength = 11 ksi; Elasticity = 29 ksi
Elongation in 2" = 15%; Machinability = 70%
Brinell Hardness = 126; Melting Point = 2600F
*Data provided for reference only

AVAILABLE LENGTHS:
2ft, 4ft, 6ft, 10-12ft Randoms or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

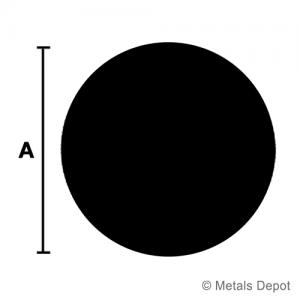

HOW TO MEASURE:
Diameter (A) X Length
* Dimensions in Inches

Tolerances



Diameter Tolerances for 1018 Cold Finished Round

Undersize Variations in Inches

Up thru 1-1/2" = .002"
over 1-1/2" to 2-1/2" = .003"
over 2-1/2" to 4" = .004"
over 4" to 6" = .005"
over 6" to 8" = .006"
over 8" to 9" = .007"
over 9" = .008"

Straightness Tolerances for 1018 Cold Finished Round

Less than 5/8" Diameter = +/- 1/8" in 10ft
5/8" Diameter and over = +/- 1/16" in 10ft

Chemistry



Typical Chemistry for 1018 Cold Finished Round

Carbon .15/.20
Manganese .60/.90
Phosphorus .04 (max.)
Sulfur .05 (max.)
Silicon .15/.35

Applications



Applications of C1018 Cold Finished Round

shafts
pins
axles
dowels
slides
fixtures
and much more

Select Size & Quantity to Add to Cart
R218 1/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2316 3/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R214 1/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2516 5/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R238 3/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2716 7/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R212 1/2 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R258 5/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2916 9/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21116 11/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R234 3/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21316 13/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R278 7/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21516 15/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21 1 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21-116 1-1/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2118 1-1/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21-316 1-3/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2114 1-1/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21-516 1-5/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2138 1-3/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21716 1-7/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2112 1-1/2 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R21916 1-9/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2158 1-5/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R211116 1-11/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2134 1-3/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R211316 1-13/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2178 1-7/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R211516 1-15/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R22 2 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R22116 2-1/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2218 2-1/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R22316 2-3/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2214 2-1/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R22516 2-5/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2238 2-3/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R22716 2-7/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2212 2-1/2 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R22916 2-9/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2258 2-5/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R221116 2-11/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2234 2-3/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2278 2-7/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R221516 2-15/16 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R23 3 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2314 3-1/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2312 3-1/2 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2334 3-3/4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2378 3-7/8 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R24 4 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R2412 4-1/2 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R25 5 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R26 6 inch Dia.
1018 Cold Finish Steel Round
Add To Cart
R27 7 inch Dia.
1018 RT Hot Roll Steel Round
Add To Cart
R28 8 inch Dia.
1018 RT Hot Roll Steel Round
Add To Cart
R210 10 inch Dia.
1018 RT Hot Roll Steel Round
Add To Cart
R2-12 12 inch Dia.
1018 RT Hot Roll Steel Round
Add To Cart
