Keyed Shafting 1045 - Key Shaft

Keyed Shafting 1045 - Key Shaft
Keyed Shafting 1045 - Key Shaft Keyed Shafting 1045 - Key Shaft

1045 Pre-Keyed Precision Ground Shafting, is a 1045 steel round that has been turned, ground and polished to a 32 RMS surface finish with a pre-machined full length keyway cut to ANSI standards. Pre-keyed shafting is an economic alternative to machining shafts yourself while saving time and labor expense. Keyshafts are ideal for all projects requiring a drive shaft or rotary shaft when mating with gears, sprockets, rotary bearings and other power transmission components. Metals Depot stocks many standard sizes and lengths of 1045 Pre-keyed Shafting that you can buy online in ready to ship precut or mill lengths at wholesale prices. Call Us for special diameters, grades and keyway sizes.

  • About
  • Tolerances

SPECIFICATIONS:

AISI C1045; ASTM A108, A29; UNS G10450

FINISH:

RMS 32 Smooth, Turned, Ground & Polished

CHARACTERISTICS:

Welding = Fair
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:

Tensile Strength = 102 ksi; Yield Point = 89 ksi
Shear Strength = 11 ksi; Elasticity = 30 ksi
Elongation in 2" = 18%; Machinability = 60%
Brinell Hardness = 217; Melting Point = 2600F
*Data provided for reference only

AVAILABLE LENGTHS:

3ft, 6ft, 12ft, or Custom Cut
Standard Length Tolerance = +/- 1/8"
Custom Cut Tolerance = +/- 1/16"

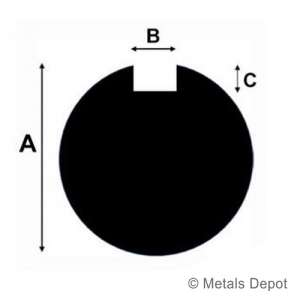

HOW TO MEASURE:

Diameter (A) x Key Width (B) x Key Depth (C)
* Dimensions in Inches

About

SPECIFICATIONS:
AISI C1045; ASTM A108, A29; UNS G10450

FINISH:
RMS 32 Smooth, Turned, Ground & Polished

CHARACTERISTICS:
Welding = Fair
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:
Tensile Strength = 102 ksi; Yield Point = 89 ksi
Shear Strength = 11 ksi; Elasticity = 30 ksi
Elongation in 2" = 18%; Machinability = 60%
Brinell Hardness = 217; Melting Point = 2600F
*Data provided for reference only

AVAILABLE LENGTHS:
3ft, 6ft, 12ft, or Custom Cut
Standard Length Tolerance = +/- 1/8"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:
Diameter (A) x Key Width (B) x Key Depth (C)
* Dimensions in Inches

Tolerances

WarningCalifornia Residents Warning!
Product / Size / Weight / Stock
Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart
Stock #
Item Size & Description
Weight / Ft.
Select Size
QTY
Price
Add to Cart
KS212 1/2" Dia. - 1/8" W x 1/16" D
C1045 TGP Keyed Shafting
KS212
1/2" Dia. - 1/8" W x 1/16" D
C1045 TGP Keyed Shafting
0.66 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 0.66 lb/ft
Add To Cart
KS258 5/8" Dia. - 3/16" W x 3/32" D
C1045 TGP Keyed Shafting
KS258
5/8" Dia. - 3/16" W x 3/32" D
C1045 TGP Keyed Shafting
1.04 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 1.04 lb/ft
Add To Cart
KS234 3/4" Dia. - 3/16" W x 3/32" D
C1045 TGP Keyed Shafting
KS234
3/4" Dia. - 3/16" W x 3/32" D
C1045 TGP Keyed Shafting
1.50 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 1.50 lb/ft
Add To Cart
KS21 1" Dia. - 1/4" W x 1/8" D
C1045 TGP Keyed Shafting
KS21
1" Dia. - 1/4" W x 1/8" D
C1045 TGP Keyed Shafting
2.66 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 2.66 lb/ft
Add To Cart
KS2114 1-1/4" Dia. - 1/4" W x 1/8" D
C1045 TGP Keyed Shafting
KS2114
1-1/4" Dia. - 1/4" W x 1/8" D
C1045 TGP Keyed Shafting
4.17 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 4.17 lb/ft
Add To Cart
KS2112 1-1/2" Dia. - 3/8" W x 3/16" D
C1045 TGP Keyed Shafting
KS2112
1-1/2" Dia. - 3/8" W x 3/16" D
C1045 TGP Keyed Shafting
6.01 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 6.01 lb/ft
Add To Cart
