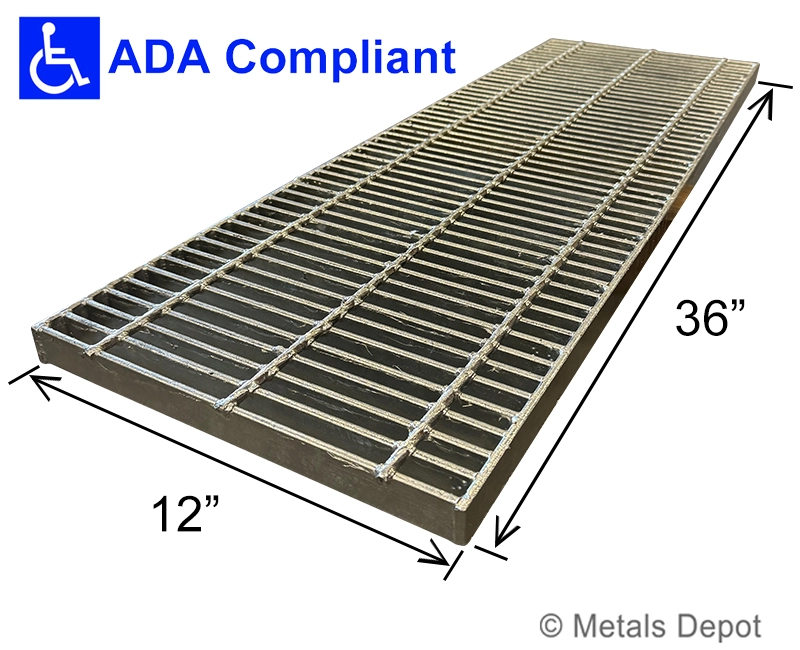

ADA Compliant 11W4 - Galvanized Trench Drainage Grate - 1" x 12" x 36"

Metals Depot exclusive ADA Compliant drainage grates are an economical solutions for covering sidewalks, parking lots or driveway trenches. Ideal for all areas that are accessed by  wheelchair, bicycle, or scooter traffic. Made from steel bar grating, drain grates are perimeter banded, welded for ultimate strength and Hot Dipped Galvanized for corrosion protection. Lengths are standard 36 inch for easy installation or removal for cleaning, but we can make most any size or configuration your project calls for. Buy multiple panels to get just the coverage you need. Also available in ADA Compliant Stainless Steel Grates and Aluminum Grates.

Applications: Driveway Trenches, Drainage Ditches, Manhole Covers, Sidewalk Drainage, Parking Lots Grates, Tree Surround Grates, etc.

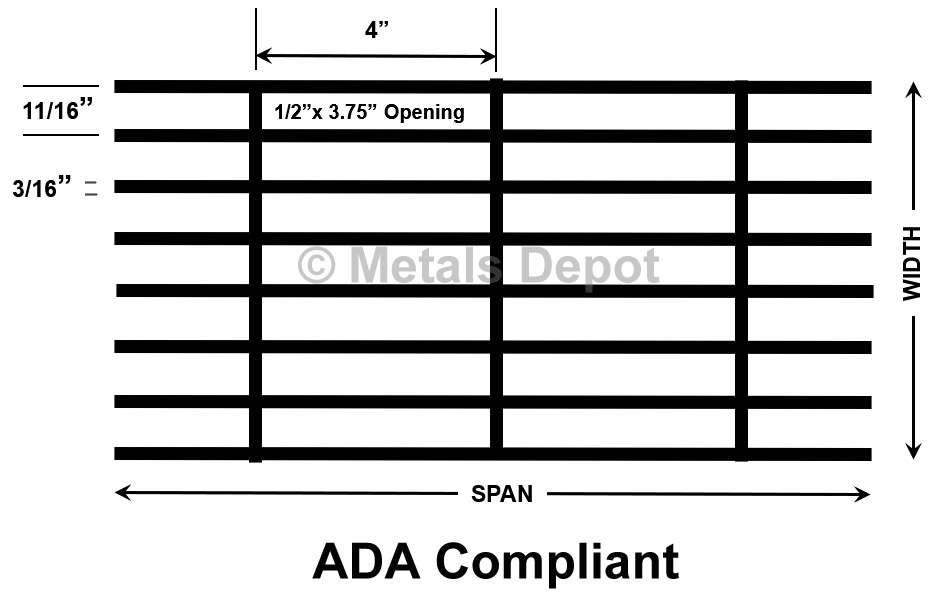

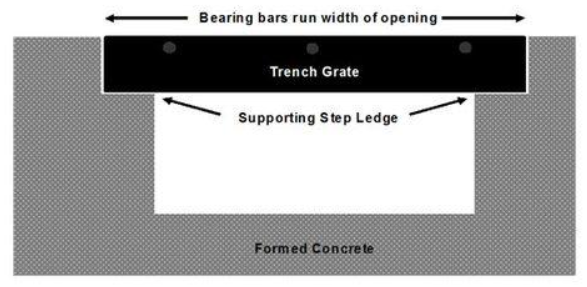

Specifications: GALVANIZED STEEL, 3/16" thick bar X 1" Depth X 12" Span X 36" Long, with .500" x 3.75" Openings. Minimum trench width of 12-1/8" required for easy install. 3500 lb Rated Capacity - Light & Medium Vehicle Traffic.
