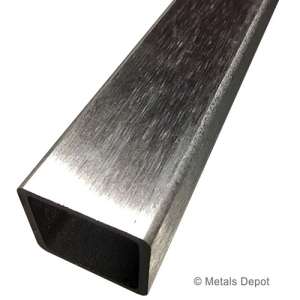

Polished Stainless Square Tube

About

SPECIFICATIONS:
Type 304, ASTM A554

FINISH:
180 Grit Polish, Brushed Finish

CHARACTERISTICS:
Welding = Excellent
Machining / Grinding = Fair
Bending / Forming = Good
Wear Resistance = Excellent
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:
Tensile Strength = 85,800 psi
Yield Point = 34,000 psi
Elongation = 60% in 2" ; Elasticity = 29,000 ksi
Shearing Strength = 11,500 psi
Brinell Hardness = 170; Density = .289 lb/in

AVAILABLE LENGTHS:
4ft. 6ft, 8ft, 10ft, 20ft, or Cut to Size
Stock lengths may vary +/- 1/4"
Cut to Size Lengths +/- 1/16"

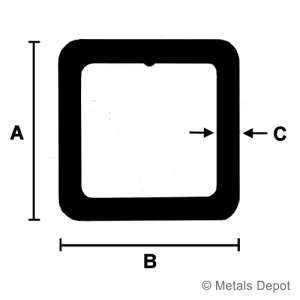

HOW TO MEASURE:
Height (A) X Width (B) X Wall Thickness (C) X Length

Chemistry



CHEMICAL PROPERTIES OF 304 STAINLESS TUBE (%)

Aluminum

0

Iron

66.3 - 74

Nickel

8 - 11

Tungsten

0

Carbon

.08

Lead

0

Phosphorous

.05

Vanadium

0

Chromium

18 - 20

Magnesium

0

Silicon

1.0

Zinc

0

Cobalt

0

Manganese

2.0

Sulfur

.03

Other

0

Copper

0

Molybdenum

0

Titanium

.0





Tolerances



Size A x B +/-
Up to 1-1/4" .015"
1-1/4" to 2-1/2" .020"
2-1/2" to 5"  .030"
Over 5" .060"
Wall Thickness C 10%









Select Size & Quantity to Add to Cart
T43416P 3/4 X 3/4 X 16GA (.062 wall)
304 Stainless Square Tube - 180 Grit Polish
T41116P 1 X 1 X 16GA (.062 wall)
304 Stainless Square Tube - 180 Grit Polish
T41111P 1 X 1 X 11GA (.120 wall)
304 Stainless Square Tube - 180 Grit Polish
T411416P 1-1/4 X 1-1/4 X 16GA (.062 wall)
304 Stainless Square Tube - 180 Grit Polish
T411411P 1-1/4 X 1-1/4 X 11GA (.120 wall)
304 Stainless Square Tube - 180 Grit Polish
T411216P 1-1/2 X 1-1/2 X 16GA (.062 wall)
304 Stainless Square Tube - 180 Grit Polish
T411211P 1-1/2 X 1-1/2 X 11GA (.120 wall)
304 Stainless Square Tube - 180 Grit Polish
T42216P 2 X 2 X 16GA (.062 wall)
304 Stainless Square Tube - 180 Grit Polish
T42211P 2 X 2 X 11GA (.120 wall)
304 Stainless Square Tube - 180 Grit Polish
T422316P 2 X 2 X 7GA (.180 wall)
304 Stainless Square Tube - 180 Grit Polish
T43311P 3 X 3 X 11GA (.120 wall)
304 Stainless Square Tube - 180 Grit Polish
T44411P 4 X 4 X 11GA (.120 wall)
304 Stainless Square Tube - 180 Grit Polish
