Stainless Keyed Shafting 303

Stainless Keyed Shafting - 303
Stainless Keyed Shafting - 303 Stainless Keyed Shafting - 303

303 Stainless Keyed Precision Ground Shafting, is manufactured from Grade 303 stainless steel round that has been turned, ground and polished with a pre-machined full length keyway cut to ANSI standards. Stainless keyed shafts are an economic alternative to machining shafts yourself while saving time and expense. Stainless Keyshafts are ideal for all applications when mating with gears, sprockets, rotary bearings and other power transmission components. Metals Depot stocks many standard sizes and lengths of  303 Stainless Pre-keyed Shafting that you can buy online in standard pre-cut or mill lengths at wholesale prices. Call Us for special diameters, grades and keyway sizes.

  • About
  • Tolerances

SPECIFICATIONS:

AISI 303; ASTM A581, A582; AMS 5640

FINISH:

RMS 32 Smooth, Turned, Ground & Polished

CHARACTERISTICS:

Welding = Fair
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Excellent
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 90 ksi; Yield Point = 45 ksi
Brinell Hardness = 170; Elasticity = 30 ksi
Elongation in 2" = 30%; Machinability = 70%
Melting Point = 2550F; Non-Magnetic
*Data provided for reference only

AVAILABLE LENGTHS:

3ft, 6ft, 12ft, or Custom Cut
Standard Length Tolerance = +/- 1/8"
Custom Cut Tolerance = +/- 1/16"

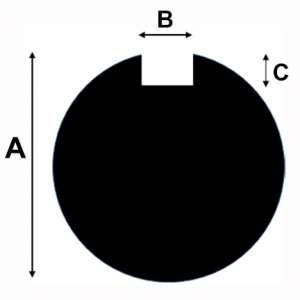

HOW TO MEASURE:

Diameter (A) x Key Width (B) x Key Depth (C)
* Dimensions in Inches

About

SPECIFICATIONS:
AISI 303; ASTM A581, A582; AMS 5640

FINISH:
RMS 32 Smooth, Turned, Ground & Polished

CHARACTERISTICS:
Welding = Fair
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Excellent
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:
Tensile Strength = 90 ksi; Yield Point = 45 ksi
Brinell Hardness = 170; Elasticity = 30 ksi
Elongation in 2" = 30%; Machinability = 70%
Melting Point = 2550F; Non-Magnetic
*Data provided for reference only

AVAILABLE LENGTHS:
3ft, 6ft, 12ft, or Custom Cut
Standard Length Tolerance = +/- 1/8"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:
Diameter (A) x Key Width (B) x Key Depth (C)
* Dimensions in Inches

Tolerances

WarningCalifornia Residents Warning!
Product / Size / Weight / Stock
Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart
Stock #
Item Size & Description
Weight / Ft.
Select Size
QTY
Price
Add to Cart
KS412 1/2" Dia. - 1/8" W x 1/16" D
303 Stainless TGP Keyed Shafting
KS412
1/2" Dia. - 1/8" W x 1/16" D
303 Stainless TGP Keyed Shafting
0.67 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 0.67 lb/ft
Add To Cart
KS458 5/8" Dia. - 3/16" W x 3/32" D
303 Stainless TGP Keyed Shafting
KS458
5/8" Dia. - 3/16" W x 3/32" D
303 Stainless TGP Keyed Shafting
1.04 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 1.04 lb/ft
Add To Cart
KS434 3/4" Dia. - 3/16" W x 3/32" D
303 Stainless TGP Keyed Shafting
KS434
3/4" Dia. - 3/16" W x 3/32" D
303 Stainless TGP Keyed Shafting
1.50 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 1.50 lb/ft
Add To Cart
KS41 1" Dia. - 1/4" W x 1/8" D
303 Stainless TGP Keyed Shafting
KS41
1" Dia. - 1/4" W x 1/8" D
303 Stainless TGP Keyed Shafting
2.66 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 2.66 lb/ft
Add To Cart
KS4114 1-1/4" Dia. - 1/4" W x 1/8" D
303 Stainless TGP Keyed Shafting
KS4114
1-1/4" Dia. - 1/4" W x 1/8" D
303 Stainless TGP Keyed Shafting
4.60 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 4.60 lb/ft
Add To Cart
KS4112 1-1/2" Dia. - 3/8" W x 3/16" D
303 Stainless TGP Keyed Shafting
KS4112
1-1/2" Dia. - 3/8" W x 3/16" D
303 Stainless TGP Keyed Shafting
6.00 lb/ft
  • Select Size
  • 2 Ft.
  • 4 Ft.
  • 6 Ft.
  • 12 Ft.
  • or Cut to Size
Select a Size 0.00
Weight: 6.00 lb/ft
Add To Cart
