304 Stainless Steel Angle

Stainless Steel Angle - 304

Stainless Steel Angle - 304

Stainless Steel Angle - 304

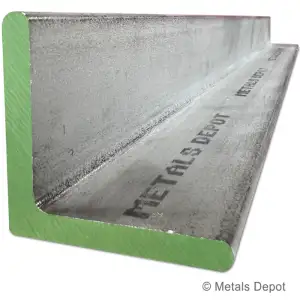

304/304L Stainless Angle, is a hot rolled stainless angle shape with inside radius corners that is ideal for all structural applications where greater strength and superior corrosion resistance is required. 304 Stainless Angle has a durable dull, grainy mill finish that is widely used for all types of fabrication projects that are exposed to the elements - chemical, acidic, fresh water, and salt water environments. Available in mill finish only, Not Polished.

About
Tolerances

SPECIFICATIONS:

304/304L, ASTM A276, QQS-763

FINISH:

Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Fair
Bending / Forming = Good
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 75 ksi; Yield Point = 30 ksi
Elasticity = 28 ksi; Elongation in 2" = 60%;
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

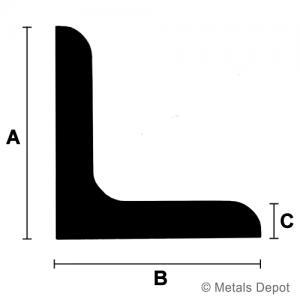

HOW TO MEASURE:

Leg (A) X Leg (B) X Thickness (C) X Length
* Dimensions in Inches

Stainless Steel Angle Tolerances

Leg Length = +/- 1/8"
Right Angle = +/- 2 Degrees
Straightness or Camber = 1/8" in 5 feet

About

SPECIFICATIONS:

304/304L, ASTM A276, QQS-763

FINISH:

Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Fair
Bending / Forming = Good
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 75 ksi; Yield Point = 30 ksi
Elasticity = 28 ksi; Elongation in 2" = 60%;
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Leg (A) X Leg (B) X Thickness (C) X Length
* Dimensions in Inches

Tolerances

Stainless Steel Angle Tolerances

Leg Length = +/- 1/8"
Right Angle = +/- 2 Degrees
Straightness or Camber = 1/8" in 5 feet

California Residents Warning!

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight
(lbs. / ft.)

Click! Arrow
to select Size

Qty

Price

Select Item

A4343418 3/4 X 3/4 X 1/8
304 Stainless Steel Angle

A4343418

3/4 X 3/4 X 1/8
304 Stainless Steel Angle

0.59 lb

Select a Size $0.00

Weight: 0.59 lb/ft

A41118 1 X 1 X 1/8
304 Stainless Steel Angle

A41118

1 X 1 X 1/8
304 Stainless Steel Angle

0.80 lb

Select a Size $0.00

Weight: 0.80 lb/ft

A411316 1 X 1 X 3/16
304 Stainless Steel Angle

A411316

1 X 1 X 3/16
304 Stainless Steel Angle

1.16 lb

Select a Size $0.00

Weight: 1.16 lb/ft

A41114 1 X 1 X 1/4
304 Stainless Steel Angle

A41114

1 X 1 X 1/4
304 Stainless Steel Angle

1.49 lb

Select a Size $0.00

Weight: 1.49 lb/ft

A411418 1-1/4 x 1-1/4 x 1/8
304 Stainless Steel Angle

A411418

1-1/4 x 1-1/4 x 1/8
304 Stainless Steel Angle

1.10 lb

Select a Size $0.00

Weight: 1.10 lb/ft

A4114316 1-1/4 X 1-1/4 X 3/16
304 Stainless Steel Angle

A4114316

1-1/4 X 1-1/4 X 3/16
304 Stainless Steel Angle

1.48 lb

Select a Size $0.00

Weight: 1.48 lb/ft

A411414 1-1/4 x 1-1/4 x 1/4
304 Stainless Steel Angle

A411414

1-1/4 x 1-1/4 x 1/4
304 Stainless Steel Angle

1.92 lb

Select a Size $0.00

Weight: 1.92 lb/ft

A411218 1-1/2 X 1-1/2 X 1/8
304 Stainless Steel Angle

A411218

1-1/2 X 1-1/2 X 1/8
304 Stainless Steel Angle

1.23 lb

Select a Size $0.00

Weight: 1.23 lb/ft

A4112316 1-1/2 X 1-1/2 X 3/16
304 Stainless Steel Angle

A4112316

1-1/2 X 1-1/2 X 3/16
304 Stainless Steel Angle

1.80 lb

Select a Size $0.00

Weight: 1.80 lb/ft

A411214 1-1/2 X 1-1/2 X 1/4
304 Stainless Steel Angle

A411214

1-1/2 X 1-1/2 X 1/4
304 Stainless Steel Angle

2.34 lb

Select a Size $0.00

Weight: 2.34 lb/ft

A42218 2 X 2 X 1/8
304 Stainless Steel Angle

A42218

2 X 2 X 1/8
304 Stainless Steel Angle

1.65 lb

Select a Size $0.00

Weight: 1.65 lb/ft

A422316 2 X 2 X 3/16
304 Stainless Steel Angle

A422316

2 X 2 X 3/16
304 Stainless Steel Angle

2.44 lb

Select a Size $0.00

Weight: 2.44 lb/ft

A42214 2 X 2 X 1/4
304 Stainless Steel Angle

A42214

2 X 2 X 1/4
304 Stainless Steel Angle

3.19 lb

Select a Size $0.00

Weight: 3.19 lb/ft

A42238 2 X 2 X 3/8
304 Stainless Steel Angle

A42238

2 X 2 X 3/8
304 Stainless Steel Angle

4.70 lb

Select a Size $0.00

Weight: 4.70 lb/ft

A4212316 2-1/2 X 2-1/2 X 3/16
304 Stainless Steel Angle

A4212316

2-1/2 X 2-1/2 X 3/16
304 Stainless Steel Angle

3.10 lb

Select a Size $0.00

Weight: 3.10 lb/ft

A421214 2-1/2 X 2-1/2 X 1/4
304 Stainless Steel Angle

A421214

2-1/2 X 2-1/2 X 1/4
304 Stainless Steel Angle

4.10 lb

Select a Size $0.00

Weight: 4.10 lb/ft

A421238 2-1/2 X 2-1/2 X 3/8
304 Stainless Steel Angle

A421238

2-1/2 X 2-1/2 X 3/8
304 Stainless Steel Angle

5.91 lb

Select a Size $0.00

Weight: 5.91 lb/ft

A432316 3 X 2 X 3/16
304 Stainless Steel Angle

A432316

3 X 2 X 3/16
304 Stainless Steel Angle

3.18 lb

Select a Size $0.00

Weight: 3.18 lb/ft

A43214 3 X 2 X 1/4
304 Stainless Steel Angle

A43214

3 X 2 X 1/4
304 Stainless Steel Angle

4.10 lb

Select a Size $0.00

Weight: 4.10 lb/ft

A433316 3 X 3 X 3/16
304 Stainless Steel Angle

A433316

3 X 3 X 3/16
304 Stainless Steel Angle

3.80 lb

Select a Size $0.00

Weight: 3.80 lb/ft

A43314 3 X 3 X 1/4
304 Stainless Steel Angle

A43314

3 X 3 X 1/4
304 Stainless Steel Angle

4.90 lb

Select a Size $0.00

Weight: 4.90 lb/ft

A43338 3 x 3 x 3/8
304 Stainless Steel Angle

A43338

3 x 3 x 3/8
304 Stainless Steel Angle

7.50 lb

Select a Size $0.00

Weight: 7.50 lb/ft

A43312 3 X 3 X 1/2
304 Stainless Steel Angle

A43312

3 X 3 X 1/2
304 Stainless Steel Angle

9.55 lb

Select a Size $0.00

Weight: 9.55 lb/ft

A431214 3-1/2 X 3-1/2 X 1/4
304 Stainless Steel Angle

A431214

3-1/2 X 3-1/2 X 1/4
304 Stainless Steel Angle

5.80 lb

Select a Size $0.00

Weight: 5.80 lb/ft

A431238 3-1/2 X 3-1/2 X 3/8
304 Stainless Steel Angle

A431238

3-1/2 X 3-1/2 X 3/8
304 Stainless Steel Angle

8.68 lb

Select a Size $0.00

Weight: 8.68 lb/ft

A44314 4 X 3 X 1/4
304 Stainless Steel Angle

A44314

4 X 3 X 1/4
304 Stainless Steel Angle

5.80 lb

Select a Size $0.00

Weight: 5.80 lb/ft

A44338 4 X 3 X 3/8
304 Stainless Steel Angle

A44338

4 X 3 X 3/8
304 Stainless Steel Angle

8.50 lb

Select a Size $0.00

Weight: 8.50 lb/ft

A44414 4 X 4 X 1/4
304 Stainless Steel Angle

A44414

4 X 4 X 1/4
304 Stainless Steel Angle

6.60 lb

Select a Size $0.00

Weight: 6.60 lb/ft

A44438 4 X 4 X 3/8
304 Stainless Steel Angle

A44438

4 X 4 X 3/8
304 Stainless Steel Angle

9.80 lb

Select a Size $0.00

Weight: 9.80 lb/ft

A44412 4 X 4 X 1/2
304 Stainless Steel Angle

A44412

4 X 4 X 1/2
304 Stainless Steel Angle

12.80 lb

Select a Size $0.00

Weight: 12.80 lb/ft

A45314 5 X 3 X 1/4
304 Stainless Steel Angle

A45314

5 X 3 X 1/4
304 Stainless Steel Angle

6.59 lb

Select a Size $0.00

Weight: 6.59 lb/ft

A45338 5 X 3 X 3/8
304 Stainless Steel Angle

A45338

5 X 3 X 3/8
304 Stainless Steel Angle

9.86 lb

Select a Size $0.00

Weight: 9.86 lb/ft

A45538 5 X 5 X 3/8
304 Stainless Steel Angle

A45538

5 X 5 X 3/8
304 Stainless Steel Angle

12.80 lb

Select a Size $0.00

Weight: 12.80 lb/ft

A46414 6 X 4 X 1/4
304 Stainless Steel Angle

A46414

6 X 4 X 1/4
304 Stainless Steel Angle

8.32 lb

Select a Size $0.00

Weight: 8.32 lb/ft

A46438 6 X 4 X 3/8
304 Stainless Steel Angle

A46438

6 X 4 X 3/8
304 Stainless Steel Angle

12.30 lb

Select a Size $0.00

Weight: 12.30 lb/ft

A46638 6 X 6 X 3/8
304 Stainless Steel Angle

A46638

6 X 6 X 3/8
304 Stainless Steel Angle

14.90 lb

Select a Size $0.00

Weight: 14.90 lb/ft

A46612 6 X 6 X 1/2
304 Stainless Steel Angle

A46612

6 X 6 X 1/2
304 Stainless Steel Angle

20.10 lb

Select a Size $0.00

Weight: 20.10 lb/ft
