316L Stainless Steel Angle

Stainless Steel Angle - 316
Stainless Steel Angle - 316 Stainless Steel Angle - 316

316 Stainless Steel Angle is an austenitic chromium nickel angle shape containing molybdenum which provides superior corrosion resistance and increased strength at elevated temperatures when compared to 304 Stainless. Widely known as a food grade stainless or marine grade, 316 Stainless is ideally suited for corrosion resistance against a wide range of chemical and acidic corrodents, and marine environment applications. Typical uses of 316 Stainless include food production, pharmaceutical equipment, furnace parts, heat exchangers, valves and pumps, chemical equipment, and parts for marine use. Primarily offered in a lower carbon, dual grade 316/316L for increased machinability and added corrosion resistance at elevated temperatures.

Metals Depot stocks a wide size assortment of 316 Stainless Steel Angle shapes that you can buy online in ready to ship precut or mill lengths or order just what you need custom Cut to Size in small or large quantity.

  • About
  • Tolerances

SPECIFICATIONS:

316L, ASTM A276, QQS-763

FINISH:

Hot Rolled, Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Very Good
Machining / Grinding = Good
Bending / Forming = Good
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 75 ksi; Yield Point = 30 ksi
Elasticity = 28 ksi; Elongation in 2" = 60%;
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

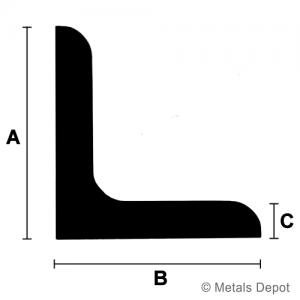

HOW TO MEASURE:

Leg (A) X Leg (B) X Thickness (C) X Length
* Dimensions in Inches

About

SPECIFICATIONS:
316L, ASTM A276, QQS-763

FINISH:
Hot Rolled, Mill Finish, Not Polished

CHARACTERISTICS:
Welding = Very Good
Machining / Grinding = Good
Bending / Forming = Good
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:
Tensile Strength = 75 ksi; Yield Point = 30 ksi
Elasticity = 28 ksi; Elongation in 2" = 60%;
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:
2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:
Leg (A) X Leg (B) X Thickness (C) X Length
* Dimensions in Inches

Tolerances

WarningCalifornia Residents Warning!
Product / Size / Weight / Stock
Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart
Stock #
Item Size & Description
Weight / Ft.
Select Size
QTY
Price
Add to Cart
A43418-316 3/4" x 3/4" x 1/8"
316L Stainless Angle
A43418-316
3/4" x 3/4" x 1/8"
316L Stainless Angle
0.59 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 0.59 lb/ft
Add To Cart
A41118-316 1" x 1" x 1/8"
316L Stainless Angle
A41118-316
1" x 1" x 1/8"
316L Stainless Angle
0.82 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 0.82 lb/ft
Add To Cart
A411418-316 1-1/4" x 1-1/4" x 1/8"
316L Stainless Angle
A411418-316
1-1/4" x 1-1/4" x 1/8"
316L Stainless Angle
1.01 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 1.01 lb/ft
Add To Cart
A411218-316 1-1/2" x 1-1/2" x 1/8"
316L Stainless Angle
A411218-316
1-1/2" x 1-1/2" x 1/8"
316L Stainless Angle
1.23 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 1.23 lb/ft
Add To Cart
A4112316-316 1-1/2" x 1-1/2" x 3/16"
316L Stainless Angle
A4112316-316
1-1/2" x 1-1/2" x 3/16"
316L Stainless Angle
1.80 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 1.80 lb/ft
Add To Cart
A411214-316 1-1/2" x 1-1/2" x 1/4"
316L Stainless Angle
A411214-316
1-1/2" x 1-1/2" x 1/4"
316L Stainless Angle
2.34 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 2.34 lb/ft
Add To Cart
A42218-316 2" x 2" x 1/8"
316L Stainless Angle
A42218-316
2" x 2" x 1/8"
316L Stainless Angle
1.65 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 1.65 lb/ft
Add To Cart
A42214-316 2" x 2" x 1/4"
316L Stainless Angle
A42214-316
2" x 2" x 1/4"
316L Stainless Angle
3.19 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 3.19 lb/ft
Add To Cart
A43314-316 3" x 3" x 1/4"
316L Stainless Angle
A43314-316
3" x 3" x 1/4"
316L Stainless Angle
4.90 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 4.90 lb/ft
Add To Cart
A43338-316 3" x 3" x 3/8"
316L Stainless Angle
A43338-316
3" x 3" x 3/8"
316L Stainless Angle
7.20 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 7.20 lb/ft
Add To Cart
A44414-316 4" x 4" x 1/4"
316L Stainless Angle
A44414-316
4" x 4" x 1/4"
316L Stainless Angle
6.60 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 6.60 lb/ft
Add To Cart
A44438-316 4" x 4" x 3/8"
316L Stainless Angle
A44438-316
4" x 4" x 3/8"
316L Stainless Angle
9.80 lb/ft
  • Select Size
  • 10 Ft.
  • 20 Ft.
Select a Size 0.00
Weight: 9.80 lb/ft
Add To Cart
