T316 Stainless Steel Flat

Stainless Steel Flat - 316

Stainless Steel Flat - 316

Stainless Steel Flat - 316

316 Stainless Steel Flat is an austenitic chromium nickel steel flat bar containing molybdenum which provides superior corrosion resistance and increased strength at elevated temperatures when compared to 304 Stainless. Widely known as a food grade stainless or marine grade, 316 Stainless is ideally suited for corrosion resistance against a wide range of chemical and acidic corrodents, and marine environment applications. Typical uses of 316 Stainless include food production, pharmaceutical equipment, furnace parts, heat exchangers, valves and pumps, chemical equipment, and parts for marine use. Primarily offered in a lower carbon, dual grade 316/316L for increased machinability and added corrosion resistance at elevated temperatures.

316 Stainless Flat is moderate to weld, cut, form and machine with the proper equipment. Metals Depot stocks a wide size assortment of 316 Stainless Steel Flat rectangular bars that you can buy online in ready to ship precut or mill lengths or order just what you need custom Cut to Size in small or large quantity.

SPECIFICATIONS: T316/316L; ASTM A276, A479, A580; AMS 5648 / 5653; QQS-763

FINISH: mill finish, smooth slightly grainy surface, not polished. Up to 1/2" thickness is sheared & edged, over 1/2" is true bar.

MECHANICAL PROPERTIES:
Yield Point = 35/30,000 psi
Tensile Strength = 80/75,000 psi
Elongation in 2" = 60%, Elasticity = 28 ksi
Brinell Hardness = 170/160
Machinabilty Rate = 45%

AVAILABLE STOCK LENGTHS:
2FT, 4FT, 6FT, 12FT

Stock lengths may vary +/- 1/4"

CHEMICAL PROPERTIES:
Chrome: 16.00-18.00, Nickel: 10.00-14.00,
Carbon: .08 Max / .03 Max
Manganese: 2.00 Max, Silicon: 1.00 Max.,
Molybdenum: 2.00-3.00

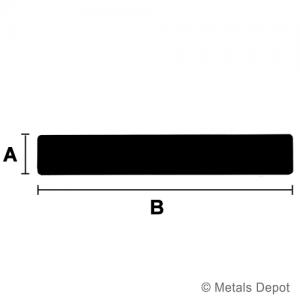

HOW TO MEASURE:
Thickness (A) X Width (B) X Length

California Residents Warning!

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight
(lbs. / ft.)

Click! Arrow
to select Size

Qty

Price

Select Item

F51812-316 1/8" x 1/2"
316/316L Stainless Flat Bar

F51812-316

1/8" x 1/2"
316/316L Stainless Flat Bar

0.22 lb

Select a Size $0.00

Weight: 0.22 lb/ft

F51834-316 1/8" x 3/4"
316/316L Stainless Flat Bar

F51834-316

1/8" x 3/4"
316/316L Stainless Flat Bar

0.33 lb

Select a Size $0.00

Weight: 0.33 lb/ft

F5181-316 1/8" x 1"
316/316L Stainless Flat Bar

F5181-316

1/8" x 1"
316/316L Stainless Flat Bar

0.44 lb

Select a Size $0.00

Weight: 0.44 lb/ft

F518112-316 1/8" x 1-1/2"
316/316L Stainless Flat Bar

F518112-316

1/8" x 1-1/2"
316/316L Stainless Flat Bar

0.65 lb

Select a Size $0.00

Weight: 0.65 lb/ft

F5182-316 1/8" x 2"
316/316L Stainless Flat Bar

F5182-316

1/8" x 2"
316/316L Stainless Flat Bar

0.87 lb

Select a Size $0.00

Weight: 0.87 lb/ft

F5183-316 1/8" x 3"
316/316L Stainless Flat Bar

F5183-316

1/8" x 3"
316/316L Stainless Flat Bar

1.31 lb

Select a Size $0.00

Weight: 1.31 lb/ft

F5184-316 1/8" x 4"
316/316L Stainless Flat Bar

F5184-316

1/8" x 4"
316/316L Stainless Flat Bar

1.74 lb

Select a Size $0.00

Weight: 1.74 lb/ft

F5186-316 1/8" x 6"
316/316L Stainless Flat Bar

F5186-316

1/8" x 6"
316/316L Stainless Flat Bar

2.60 lb

Select a Size $0.00

Weight: 2.60 lb/ft

F51412-316 1/4" x 1/2"
316/316L Stainless Flat Bar

F51412-316

1/4" x 1/2"
316/316L Stainless Flat Bar

0.44 lb

Select a Size $0.00

Weight: 0.44 lb/ft

F51434-316 1/4" x 3/4"
316/316L Stainless Flat Bar

F51434-316

1/4" x 3/4"
316/316L Stainless Flat Bar

0.70 lb

Select a Size $0.00

Weight: 0.70 lb/ft

F5141-316 1/4" x 1"
316/316L Stainless Flat Bar

F5141-316

1/4" x 1"
316/316L Stainless Flat Bar

0.87 lb

Select a Size $0.00

Weight: 0.87 lb/ft

F514112-316 1/4" x 1-1/2"
316/316L Stainless Flat Bar

F514112-316

1/4" x 1-1/2"
316/316L Stainless Flat Bar

1.30 lb

Select a Size $0.00

Weight: 1.30 lb/ft

F5142-316 1/4" x 2"
316/316L Stainless Flat Bar

F5142-316

1/4" x 2"
316/316L Stainless Flat Bar

1.74 lb

Select a Size $0.00

Weight: 1.74 lb/ft

F5143-316 1/4" x 3"
316/316L Stainless Flat Bar

F5143-316

1/4" x 3"
316/316L Stainless Flat Bar

2.61 lb

Select a Size $0.00

Weight: 2.61 lb/ft

F5144-316 1/4" x 4"
316/316L Stainless Flat Bar

F5144-316

1/4" x 4"
316/316L Stainless Flat Bar

3.48 lb

Select a Size $0.00

Weight: 3.48 lb/ft

F5146-316 1/4" x 6"
316/316L Stainless Flat Bar

F5146-316

1/4" x 6"
316/316L Stainless Flat Bar

5.22 lb

Select a Size $0.00

Weight: 5.22 lb/ft

F5148-316 1/4" x 8"
316/316L Stainless Flat Bar

F5148-316

1/4" x 8"
316/316L Stainless Flat Bar

6.96 lb

Select a Size $0.00

Weight: 6.96 lb/ft

F5381-316 3/8" x 1"
316/316L Stainless Flat Bar

F5381-316

3/8" x 1"
316/316L Stainless Flat Bar

1.30 lb

Select a Size $0.00

Weight: 1.30 lb/ft

F538112-316 3/8" x 1-1/2"
316/316L Stainless Flat Bar

F538112-316

3/8" x 1-1/2"
316/316L Stainless Flat Bar

1.96 lb

Select a Size $0.00

Weight: 1.96 lb/ft

F5382-316 3/8" x 2"
316/316L Stainless Flat Bar

F5382-316

3/8" x 2"
316/316L Stainless Flat Bar

2.55 lb

Select a Size $0.00

Weight: 2.55 lb/ft

F5383-316 3/8" x 3"
316/316L Stainless Flat Bar

F5383-316

3/8" x 3"
316/316L Stainless Flat Bar

3.92 lb

Select a Size $0.00

Weight: 3.92 lb/ft

F5384-316 3/8" x 4"
316/316L Stainless Flat Bar

F5384-316

3/8" x 4"
316/316L Stainless Flat Bar

5.22 lb

Select a Size $0.00

Weight: 5.22 lb/ft

F5386-316 3/8" x 6"
316/316L Stainless Flat Bar

F5386-316

3/8" x 6"
316/316L Stainless Flat Bar

7.83 lb

Select a Size $0.00

Weight: 7.83 lb/ft

F5121-316 1/2" x 1"
316/316L Stainless Flat Bar

F5121-316

1/2" x 1"
316/316L Stainless Flat Bar

1.74 lb

Select a Size $0.00

Weight: 1.74 lb/ft

F12112-316 1/2" x 1-1/2"
316/316L Stainless Flat Bar

F12112-316

1/2" x 1-1/2"
316/316L Stainless Flat Bar

2.61 lb

Select a Size $0.00

Weight: 2.61 lb/ft

F5122-316 1/2" x 2"
316/316L Stainless Flat Bar

F5122-316

1/2" x 2"
316/316L Stainless Flat Bar

3.48 lb

Select a Size $0.00

Weight: 3.48 lb/ft

F5123-316 1/2" x 3"
316/316L Stainless Flat Bar

F5123-316

1/2" x 3"
316/316L Stainless Flat Bar

5.22 lb

Select a Size $0.00

Weight: 5.22 lb/ft

F5124-316 1/2" x 4"
316/316L Stainless Flat Bar

F5124-316

1/2" x 4"
316/316L Stainless Flat Bar

6.96 lb

Select a Size $0.00

Weight: 6.96 lb/ft

F5126-316 1/2" x 6"
316/316L Stainless Flat Bar

F5126-316

1/2" x 6"
316/316L Stainless Flat Bar

10.40 lb

Select a Size $0.00

Weight: 10.40 lb/ft

F5341-316 3/4" x 1"
316/316L Stainless Flat Bar - True Bar

F5341-316

3/4" x 1"
316/316L Stainless Flat Bar - True Bar

2.55 lb

Select a Size $0.00

Weight: 2.55 lb/ft

F534112-316 3/4" x 1-1/2"
316/316L Stainless Flat Bar - True Bar

F534112-316

3/4" x 1-1/2"
316/316L Stainless Flat Bar - True Bar

3.83 lb

Select a Size $0.00

Weight: 3.83 lb/ft

F5342-316 3/4" x 2"
316/316L Stainless Flat Bar - True Bar

F5342-316

3/4" x 2"
316/316L Stainless Flat Bar - True Bar

5.10 lb

Select a Size $0.00

Weight: 5.10 lb/ft

F5343-316 3/4" x 3"
316/316L Stainless Flat Bar - True Bar

F5343-316

3/4" x 3"
316/316L Stainless Flat Bar - True Bar

7.65 lb

Select a Size $0.00

Weight: 7.65 lb/ft

F5344-316 3/4" x 4"
316/316L Stainless Flat Bar - True Bar

F5344-316

3/4" x 4"
316/316L Stainless Flat Bar - True Bar

10.20 lb

Select a Size $0.00

Weight: 10.20 lb/ft

F5346-316 3/4" x 6"
316/316L Stainless Flat Bar - True Bar

F5346-316

3/4" x 6"
316/316L Stainless Flat Bar - True Bar

15.30 lb

Select a Size $0.00

Weight: 15.30 lb/ft

F512-316 1" x 2"
316/316L Stainless Flat Bar - True Bar

F512-316

1" x 2"
316/316L Stainless Flat Bar - True Bar

6.80 lb

Select a Size $0.00

Weight: 6.80 lb/ft

F513-316 1" x 3"
316/316L Stainless Flat Bar - True Bar

F513-316

1" x 3"
316/316L Stainless Flat Bar - True Bar

10.20 lb

Select a Size $0.00

Weight: 10.20 lb/ft

F514-316 1" x 4"
316/316L Stainless Flat Bar - True Bar

F514-316

1" x 4"
316/316L Stainless Flat Bar - True Bar

13.60 lb

Select a Size $0.00

Weight: 13.60 lb/ft

F516-316 1" x 6"
316/316L Stainless Flat Bar - True Bar

F516-316

1" x 6"
316/316L Stainless Flat Bar - True Bar

20.40 lb

Select a Size $0.00

Weight: 20.40 lb/ft
