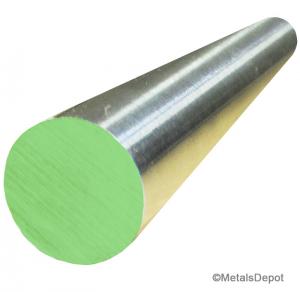

303 Stainless TGP Shafting

303 Stainless TGP Shafting, is stainless round that has been Turned, Grounded, and Polished up to a tight diameter tolerance of +/- .0005" making it ideal for all bearing applications where greater strength and good corrosion resistance is required. 303 Stainless TGP, bearing shaft quality is widely used for all shafting applications that are exposed to the elements - food, chemical, acidic, fresh water, and salt water environments.

About

SPECIFICATIONS:

AISI 303; ASTM A581/A582; AMS 5640

FINISH:

Shiny, Smooth, Polished Finish, 32/20 RMS

CHARACTERISTICS:

Welding = Fair
Machining / Grinding = Excellent
Bending / Forming = Fair
Wear Resistance = Good
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Not Magnetic
Tensile Strength = 90 ksi; Yield Point = 35 ksi
Elongation in 2" = 50%; Machinability = 70%
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 12ft Randoms or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

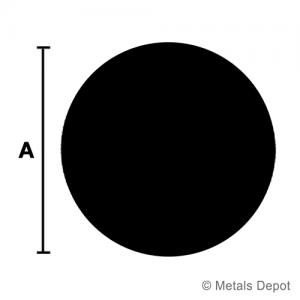

HOW TO MEASURE:

Diameter (A) X Length
* Dimensions in Inches

About

SPECIFICATIONS:

AISI 303; ASTM A581/A582; AMS 5640

FINISH:

Shiny, Smooth, Polished Finish, 32/20 RMS

CHARACTERISTICS:

Welding = Fair
Machining / Grinding = Excellent
Bending / Forming = Fair
Wear Resistance = Good
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Not Magnetic
Tensile Strength = 90 ksi; Yield Point = 35 ksi
Elongation in 2" = 50%; Machinability = 70%
Brinell Hardness = 160; Melting Point = 2550F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 12ft Randoms or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Diameter (A) X Length
* Dimensions in Inches

California Residents Warning!

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock #

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

R414-303TP 1/4 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R414-303TP

1/4 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

0.17 lb/ft

Select a Size 0.00

Weight: 0.17 lb/ft

Add To Cart

R438-303 3/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R438-303

3/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

0.38 lb/ft

Select a Size 0.00

Weight: 0.38 lb/ft

Add To Cart

R412-303 1/2 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R412-303

1/2 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

0.70 lb/ft

Select a Size 0.00

Weight: 0.70 lb/ft

Add To Cart

R458-303TGP 5/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R458-303TGP

5/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

1.10 lb/ft

Select a Size 0.00

Weight: 1.10 lb/ft

Add To Cart

R434-TGP303 3/4 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R434-TGP303

3/4 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

1.70 lb/ft

Select a Size 0.00

Weight: 1.70 lb/ft

Add To Cart

R478-303TP 7/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R478-303TP

7/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

2.10 lb/ft

Select a Size 0.00

Weight: 2.10 lb/ft

Add To Cart

R41-303GP 1 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R41-303GP

1 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

2.80 lb/ft

Select a Size 0.00

Weight: 2.80 lb/ft

Add To Cart

R4118-303GP 1-1/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R4118-303GP

1-1/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

3.38 lb/ft

Select a Size 0.00

Weight: 3.38 lb/ft

Add To Cart

R4114-303 1-1/4 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R4114-303

1-1/4 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

4.20 lb/ft

Select a Size 0.00

Weight: 4.20 lb/ft

Add To Cart

R4138-303GP 1-3/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R4138-303GP

1-3/8 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

5.05 lb/ft

Select a Size 0.00

Weight: 5.05 lb/ft

Add To Cart

R4112-303 1-1/2 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R4112-303

1-1/2 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

6.20 lb/ft

Select a Size 0.00

Weight: 6.20 lb/ft

Add To Cart

R42-303GP 2 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

R42-303GP

2 inch Dia. (+/- .0005")
303 Stainless Steel TGP Precision Shafting

10.69 lb/ft

Select a Size 0.00

Weight: 10.69 lb/ft

Add To Cart
