A36 Structural Steel Channel

About

SPECIFICATIONS:
ASTM A36 Steel, Hot Rolled

FINISH:
Blue / Gray, slightly grainy

CHARACTERISTICS:
Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Fair
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:
Yield Point = 36,000 psi
Tensile Strength = 58,000 psi
Elongation = 20% in 2" ; Elasticity = 29 ksi
Brinell Hardness = 133; Melting Point = 2600F
*Data provided for reference only

AVAILABLE STOCK SIZES:
2ft, 4ft. 6ft, 8ft, 10ft, 20ft, or Cut to Size
Stock lengths may vary +/- 1/4"

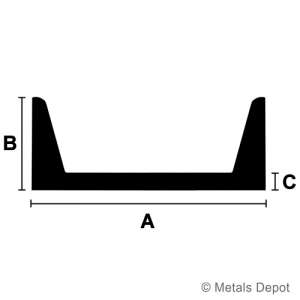

HOW TO MEASURE:
Width (A) X Flange (B) X Web (C) X Length

Chemistry


Typical Chemistry for A36 Steel Channel

Carbon = .25/.29%
Copper = .2%
Iron = 98%
Manganese = 1.03%
Phosphorus = .04%
Silicon = .028%
Sulfur = .05%

Tolerances



TOLERANCES OF A36 STEEL CHANNEL (+/-)

Channel Size

Depth of Channel

Flange Width

Straightness in 10 feet

Lengths +/-

Out of Square

Custom Cut

Standard

1/2 to 1-1/2

1/32

1/32

1/4

1/16

1/4

1/32

1-1/2 to 3

1/16

1/16

1/4

1/16

1/4

1/32

3 to 7

3/32

1/8

1/4

1/8

1/4

1/32

7 to 14

1/8

1/8

1/4

1/8

1/4

1/32

over 14

3/16

1/8

1/4

1/8

1/2

1/32

Tolerance values provided herein are for informational purposes only and not guaranteed.

Select Size & Quantity to Add to Cart
C111218 1 X 1/2 X 1/8
A-36 Steel Bar Channel
Add To Cart
c11141218 1-1/4 X 1/2 X 1/8
A-36 Steel Bar Channel
Add To Cart
C11121218 1-1/2 X 1/2 X 1/8
A-36 Steel Bar Channel
Add To Cart
C11123418 1-1/2 x 3/4 x 1/8
A36 Steel Bar Channel
Add To Cart
C121218 2 x 1/2 x 1/8
A36 Steel Bar Channel
Add To Cart
C12916316 2 x 9/16 x 3/16
A36 Steel Bar Channel
Add To Cart
C12118 2 X 1 X 1/8
A-36 Steel Bar Channel
Add To Cart
C121316 2 X 1 X 3/16
A-36 Steel Bar Channel
Add To Cart
C121258316 2-1/2 x 5/8 x 3/16
A36 Steel Bar Channel
Add To Cart
C2335 3 x 3.5 lb (3 X 1.372 X .132)
A-36 Steel Channel
Add To Cart
C2341 3 x 4.1 lb (3 X 1.41 X .170)
A-36 Steel Channel
Add To Cart
C2350 3 x 5.0 lb (3 X 1.498 X .258)
A-36 Steel Channel
Add To Cart
c2360 3 x 6.0 lb (3 X 1.596 X .356)
A-36 Steel Channel
Add To Cart
C2371 3 x 7.1 lb (3 X 1.938 X .313)
A-36 Steel S&C Channel
Add To Cart
C2454 4 x 5.4 (4 X 1.584 X .184)
A-36 Steel Channel
Add To Cart
C24625 4 x 6.25 lb (4 X 1.647 X .247)
A-36 Steel Channel
Add To Cart
C24725 4 x 7.25 lb (4 X 1.721 X .321)
A-36 Steel Channel
Add To Cart
C24138 4 x 13.8 lb (4 x 2.50 x .500)
A36 Steel MC Channel
Add To Cart
C2567 5 x 6.7 lb (5 X 1.75 X .190)
A-36 Steel Channel
Add To Cart
C2590 5 x 9.0 lb (5 X 1.885 X .325)
A-36 Steel Channel
Add To Cart
C2682 6 x 8.2 (6 X 1.92 X .200)
A-36 Steel Channel
Add To Cart
C26105 6 x 10.5 lb (6 X 2.034 X .314)
A-36 Steel Channel
Add To Cart
C2612 6 x 12 lb (6 x 2.497 x .310)
A36 Steel MC Channel
Add To Cart
C2613 6 x 13 lb (6 X 2.157 X .437)
A-36 Steel Channel
Add To Cart
C26153 6 x 15.3 lb (6 x 3.50 x .340)
A36 Steel MC Channel
Add To Cart
C2798 7 x 9.8 lb (7 x 2.09 x .210)
A36 Steel Channel
Add To Cart
C271225 7 x 12.25 lb (7 x 2.194 x .314)
A36 Steel Channel
Add To Cart
C2885 8 x 8.5 lb (8 X 1.874 X .179)
A-36 Steel MC Stringer Channel
Add To Cart
C28115 8 x 11.5 lb (8 X 2.26 X .220)
A-36 Steel Channel
Add To Cart
C281375 8 x 13.75 lb (8 x 2.343 x .303)
A36 Steel Channel
Add To Cart
C281875 8 x 18.75 lb (8 x 2.527 X .487)
A36 Steel Channel
Add To Cart
C2820 8 x 20 lb (8 x 3.025 x .400)
A36 Steel MC Channel
Add To Cart
C28214 8 x 21.4 lb (8 x 3.45 x .375)
A36 Steel MC Channel
Add To Cart
C29134 9 x 13.4 lb (9 x 2.433 x .233)
A36 Steel Channel
Add To Cart
C21084 10 x 8.4 lb (10 X 1.50 X .170)
A-36 Steel MC Stringer Channel
Add To Cart
C210153 10 x 15.3 lb (10 x 2.60 x .240)
A36 Steel Channel
Add To Cart
C21020 10 x 20 lb (10 X 2.739 X .379)
A-36 Steel Channel
Add To Cart
C21025 10 x 25 lb (10 x 2.886 x .526)
A36 Steel Channel
Add To Cart
C21030 10 x 30 lb (10 x 3.033 x .673)
A36 Steel Channel
Add To Cart
C212106 12 x 10.6 lb (12 x 1.50 x .190)
A36 Steel MC Stringer Channel
Add To Cart
C212143 12 x 14.3 lb (12 x 2.13 x .250)
A36 Steel MC Stringer Channel
Add To Cart
C212207 12 x 20.7 lb (12 x 2.942 x .282)
A36 Steel Channel
Add To Cart
C21225 12 x 25 lb (12 X 3.047 X .387)
A-36 Steel Channel
Add To Cart
C21230 12 x 30 lb (12 x 3.17 x .510)
A36 Steel Channel
Add To Cart
C215339 15 x 33.9 lb (15 x 3.40 x .400)
A36 Steel Channel
Add To Cart
C21540 15 x 40 lb (15 x 3.52 x .520)
A36 Steel Channel
Add To Cart
C218427 18 x 42.7 lb (18 x 3.95 x .450)
A36 Steel MC Channel
Add To Cart
