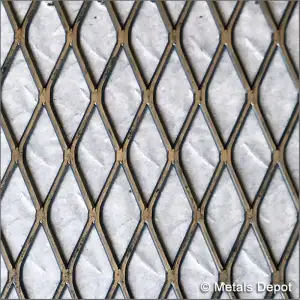

Steel Expanded Metal is a sheet product that has been slit and stretched to a wide array of diamond shaped openings. Steel Expanded Metal offers savings in weight and metal, free passage of light, liquid, sound and air, while providing a decorative or ornamental effect.

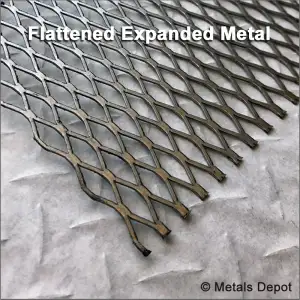

Specifications: MIL-M-17194D, ASTM F1267-91, Type I Standard (Raised) & Type II Flattened (smooth) surface.
Applications: security, sifting, machinery guards, flooring, walkways, shelving, window protection, etc.
Workability: Easy to Weld, Cut, and Form with proper equipment
Mechanical Properties: Magnetic, Tensile = 52K +/-, Yield = 38K +/-
How is it Measured? Nominal size of diamond opening, short-way X thickness X width X length
Available Stock Sizes: 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 5ft x 10ft or Cut to Size

Ordering Note: Stock sizes may vary +/- 1/4". Diamonds run Longways on 4ft x 8ft & 5ft x 10ft, Shortway on all pre-cut sizes. Please call us if you need specific sizes or diamond direction.

Spec Sheet

Steel Expanded Metal - Specification Sheet

Spec Sheet

Steel Expanded Metal - Specification Sheet

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight
(lbs. / ft.)

Click! Arrow
to select Size

Qty

Price

Select Item

E11418F 1/4" x #18 - Steel Expanded Metal - Flattened
(.030" thick x .118" x .715" opening)

E11418F

1/4" x #18 - Steel Expanded Metal - Flattened
(.030" thick x .118" x .715" opening)

1.20 lb

Select a Size $0.00

Weight: 1.20 lb/ft

E11213F 1/2" x #13 - Steel Expanded Metal - Flattened
(.070" thick x .265" x 1.00" opening)

E11213F

1/2" x #13 - Steel Expanded Metal - Flattened
(.070" thick x .265" x 1.00" opening)

1.40 lb

Select a Size $0.00

Weight: 1.40 lb/ft

E11216F 1/2" x #16 - Steel Expanded Metal - Flattened
(.050" thick x .312" x 1.00" opening)

E11216F

1/2" x #16 - Steel Expanded Metal - Flattened
(.050" thick x .312" x 1.00" opening)

0.90 lb

Select a Size $0.00

Weight: 0.90 lb/ft

E11216F-G 1/2" x #16 - Galvanized Expanded - Flattened
(.050" thick x .312" x 1.00" opening)

E11216F-G

1/2" x #16 - Galvanized Expanded - Flattened
(.050" thick x .312" x 1.00" opening)

1.00 lb

Select a Size $0.00

Weight: 1.00 lb/ft

E13413F 3/4" x #13 - Steel Expanded Metal - Flattened
(.070" thick x .688" x 1.78" opening)

E13413F

3/4" x #13 - Steel Expanded Metal - Flattened
(.070" thick x .688" x 1.78" opening)

0.75 lb

Select a Size $0.00

Weight: 0.75 lb/ft

E1349F 3/4" x #9 - Steel Expanded Metal - Flattened
(.120" thick x .563" x 1.688" opening)

E1349F

3/4" x #9 - Steel Expanded Metal - Flattened
(.120" thick x .563" x 1.688" opening)

1.71 lb

Select a Size $0.00

Weight: 1.71 lb/ft

E1349F-G 3/4" x #9 - Galvanized Expanded - Flattened
(.120" thick x .563" x 1.688" opening)

E1349F-G

3/4" x #9 - Galvanized Expanded - Flattened
(.120" thick x .563" x 1.688" opening)

1.90 lb

Select a Size $0.00

Weight: 1.90 lb/ft

E11129F 1-1/2" x #9 - Steel Expanded Metal - Flattened
(.110" thick x 1.00" x 2.56" opening)

E11129F

1-1/2" x #9 - Steel Expanded Metal - Flattened
(.110" thick x 1.00" x 2.56" opening)

1.14 lb

Select a Size $0.00

Weight: 1.14 lb/ft

E11216S 1/2" x #16 - Steel Expanded Metal - Raised
(.175" thick x .375" x .938" opening)

E11216S

1/2" x #16 - Steel Expanded Metal - Raised
(.175" thick x .375" x .938" opening)

0.86 lb

Select a Size $0.00

Weight: 0.86 lb/ft

E11213 1/2" x #13 - Steel Expanded Metal - Raised
(.204" thick x .312" x .938" opening)

E11213

1/2" x #13 - Steel Expanded Metal - Raised
(.204" thick x .312" x .938" opening)

1.47 lb

Select a Size $0.00

Weight: 1.47 lb/ft

E1349S 3/4" x #9 - Steel Expanded Metal - Raised
(.312" thick x .688" x 1.56" opening)

E1349S

3/4" x #9 - Steel Expanded Metal - Raised
(.312" thick x .688" x 1.56" opening)

1.80 lb

Select a Size $0.00

Weight: 1.80 lb/ft

E11129S 1-1/2" x #9 - Steel Expanded Metal - Raised
(.312" thick x 1.13" x 2.38" opening)

E11129S

1-1/2" x #9 - Steel Expanded Metal - Raised
(.312" thick x 1.13" x 2.38" opening)

1.20 lb

Select a Size $0.00

Weight: 1.20 lb/ft

E11126 1-1/2" x 6 Ga - Steel Expanded Metal - Raised
(.433" thick x 1.110" x 2.313" opening)

E11126

1-1/2" x 6 Ga - Steel Expanded Metal - Raised
(.433" thick x 1.110" x 2.313" opening)

2.50 lb

Select a Size $0.00

Weight: 2.50 lb/ft

G13 3.0 lb - Steel Expanded Grating - Raised
(.540" thick x .940" x 3.44" opening)

G13

3.0 lb - Steel Expanded Grating - Raised
(.540" thick x .940" x 3.44" opening)

3.00 lb

Select a Size $0.00

Weight: 3.00 lb/ft

G14 4.0 lb - Steel Expanded Grating - Raised
(.618" thick x .940" x 3.44" opening)

G14

4.0 lb - Steel Expanded Grating - Raised
(.618" thick x .940" x 3.44" opening)

4.00 lb

Select a Size $0.00

Weight: 4.00 lb/ft

G1625 6.25 lb - Steel Expanded Grating - Raised
(.715" thick x .813" x 3.38" opening)

G1625

6.25 lb - Steel Expanded Grating - Raised
(.715" thick x .813" x 3.38" opening)

6.25 lb

Select a Size $0.00

Weight: 6.25 lb/ft

UE1161 1/16" opening X 1" wide
Expanded Steel U-Edging

UE1161

1/16" opening X 1" wide
Expanded Steel U-Edging

0.55 lb

Select a Size $0.00

Weight: 0.55 lb/ft

UE181 1/8" opening X 1" wide
Expanded Steel U-Edging

UE181

1/8" opening X 1" wide
Expanded Steel U-Edging

0.55 lb

Select a Size $0.00

Weight: 0.55 lb/ft

UE141 1/4" opening X 1" wide
Expanded Steel U-Edging

UE141

1/4" opening X 1" wide
Expanded Steel U-Edging

0.55 lb

Select a Size $0.00

Weight: 0.55 lb/ft
