Steel Rectangle Tube A513 / A500

steel rectangle tube

steel rectangle tube

steel rectangle tube

Rectangle Steel Tube is a welded structural grade tubing that is available in either type A513 or A500 Grade B, depending on its size and wall thickness. Either grade is ideal for all structural applications, general fabrication, manufacturing and repairs. Steel Rectangle Tube is widely used in industrial maintenance, agricultural implements, transportation equipment, truck beds, trailers, frames, etc. It's box-shape configuration allows for much greater strength and rigidity compared to angles or channels. This steel shape is easy to weld, cut, form and machine with the proper equipment and knowledge. Metals Depot stocks hundreds of sizes of rectangle tube at wholesale prices in ready to ship precut and mill lengths or you can order just what you need custom Cut to Size in any quantity.

About

SPECIFICATIONS:

ASTM A513 (1020-1026)
ASTM A500 Grade B

FINISH:

A513 - Dark Blue/Black, smooth slight oil coating
A500 - Blue/Dark Gray, slightly grainy, dry

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:

Yield Point = 62 ksi (A513); 46 ksi (A500)
Tensile Strength = 72 ksi (A513); 58 ksi (A500)
Elongation in 2" = 10% (A513); 23% (A500)
Outside Corner Radius = 3X wall max.
*Data provided for reference only

AVAILABLE STOCK SIZES:

2ft, 4ft. 6ft, 8ft, 12ft, 24ft, or Cut to Size
Stock lengths may vary +/- 1/4"

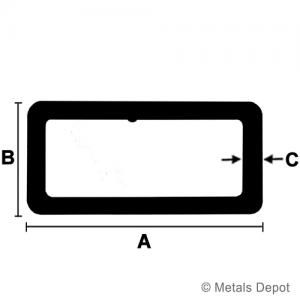

HOW TO MEASURE:

Height (A) X Width (B) X Wall Thickness (C) X Length

About

SPECIFICATIONS:

ASTM A513 (1020-1026)
ASTM A500 Grade B

FINISH:

A513 - Dark Blue/Black, smooth slight oil coating
A500 - Blue/Dark Gray, slightly grainy, dry

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Poor

MECHANICAL PROPERTIES:

Yield Point = 62 ksi (A513); 46 ksi (A500)
Tensile Strength = 72 ksi (A513); 58 ksi (A500)
Elongation in 2" = 10% (A513); 23% (A500)
Outside Corner Radius = 3X wall max.
*Data provided for reference only

AVAILABLE STOCK SIZES:

2ft, 4ft. 6ft, 8ft, 12ft, 24ft, or Cut to Size
Stock lengths may vary +/- 1/4"

HOW TO MEASURE:

Height (A) X Width (B) X Wall Thickness (C) X Length

California Residents Warning!

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

T1112083 1 X 1/2 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

T1112083

1 X 1/2 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

0.70 lb

Select a Size 0.00

Weight: 0.70 lb/ft

T11121216 1-1/2 X 1/2 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

T11121216

1-1/2 X 1/2 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

0.82 lb

Select a Size 0.00

Weight: 0.82 lb/ft

T11123416 1-1/2 X 3/4 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

T11123416

1-1/2 X 3/4 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

0.94 lb

Select a Size 0.00

Weight: 0.94 lb/ft

T11123414 1-1/2 X 3/4 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

T11123414

1-1/2 X 3/4 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

1.18 lb

Select a Size 0.00

Weight: 1.18 lb/ft

T11123411 1-1/2 X 3/4 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

T11123411

1-1/2 X 3/4 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

1.68 lb

Select a Size 0.00

Weight: 1.68 lb/ft

T1112116 1-1/2 X 1 X 16GA (.065 wall)
A513 Rectangle Steel Tube

T1112116

1-1/2 X 1 X 16GA (.065 wall)
A513 Rectangle Steel Tube

1.05 lb

Select a Size 0.00

Weight: 1.05 lb/ft

T1112114 1-1/2 X 1 X 14GA (.083 wall)
A513 Rectangle Steel Tube

T1112114

1-1/2 X 1 X 14GA (.083 wall)
A513 Rectangle Steel Tube

1.32 lb

Select a Size 0.00

Weight: 1.32 lb/ft

T1112111 1-1/2 X 1 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

T1112111

1-1/2 X 1 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

1.84 lb

Select a Size 0.00

Weight: 1.84 lb/ft

T12116 2 X 1 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

T12116

2 X 1 X 16 GA (.065 wall)
A513 Rectangle Steel Tube

1.30 lb

Select a Size 0.00

Weight: 1.30 lb/ft

T12114 2 X 1 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

T12114

2 X 1 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

1.60 lb

Select a Size 0.00

Weight: 1.60 lb/ft

T12111 2 X 1 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

T12111

2 X 1 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

2.25 lb

Select a Size 0.00

Weight: 2.25 lb/ft

T121316 2 X 1 X 3/16 (.188 wall)
A500 Rectangle Steel Tube

T121316

2 X 1 X 3/16 (.188 wall)
A500 Rectangle Steel Tube

3.05 lb

Select a Size 0.00

Weight: 3.05 lb/ft

T1211214 2 X 1-1/2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

T1211214

2 X 1-1/2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

1.90 lb

Select a Size 0.00

Weight: 1.90 lb/ft

T1211211 2 X 1-1/2 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

T1211211

2 X 1-1/2 X 11 GA (.120 wall)
A513 Rectangle Steel Tube

2.66 lb

Select a Size 0.00

Weight: 2.66 lb/ft

T12112316 2 X 1-1/2 X 3/16 (.188 wall)
A500 Rectangle Steel Tube

T12112316

2 X 1-1/2 X 3/16 (.188 wall)
A500 Rectangle Steel Tube

4.00 lb

Select a Size 0.00

Weight: 4.00 lb/ft

T1212111 2-1/2 X 1 X 11GA (.120 wall)
A500 Rectangle Steel Tube

T1212111

2-1/2 X 1 X 11GA (.120 wall)
A500 Rectangle Steel Tube

2.68 lb

Select a Size 0.00

Weight: 2.68 lb/ft

T121211211 2-1/2 X 1-1/2 X 11GA (.120 wall)
A500 Rectangle Steel Tube

T121211211

2-1/2 X 1-1/2 X 11GA (.120 wall)
A500 Rectangle Steel Tube

3.00 lb

Select a Size 0.00

Weight: 3.00 lb/ft

T1212112316 2-1/2 X 1-1/2 X 3/16 (.188 wall)
A500 Rectangle Steel Tube

T1212112316

2-1/2 X 1-1/2 X 3/16 (.188 wall)
A500 Rectangle Steel Tube

4.32 lb

Select a Size 0.00

Weight: 4.32 lb/ft

T121211214 2-1/2 X 1-1/2 X 1/4 (.250 wall)
A500 Rectangle Steel Tube

T121211214

2-1/2 X 1-1/2 X 1/4 (.250 wall)
A500 Rectangle Steel Tube

5.45 lb

Select a Size 0.00

Weight: 5.45 lb/ft

T13116 3 x 1 x 16GA (.065 wall)
A513 Rectangle Steel Tube

T13116

3 x 1 x 16GA (.065 wall)
A513 Rectangle Steel Tube

1.71 lb

Select a Size 0.00

Weight: 1.71 lb/ft

T13114 3 x 1 x 14GA (.083 wall)
A513 Rectangle Steel Tube

T13114

3 x 1 x 14GA (.083 wall)
A513 Rectangle Steel Tube

2.20 lb

Select a Size 0.00

Weight: 2.20 lb/ft

T13111 3 x 1 x 11 GA (.120 wall)
A500 Rectangle Steel Tube

T13111

3 x 1 x 11 GA (.120 wall)
A500 Rectangle Steel Tube

3.07 lb

Select a Size 0.00

Weight: 3.07 lb/ft

T131316 3 X 1 X 7 Ga (.180") wall
A500 Steel Structural Rectangle Tube

T131316

3 X 1 X 7 Ga (.180") wall
A500 Steel Structural Rectangle Tube

4.34 lb

Select a Size 0.00

Weight: 4.34 lb/ft

T1311214 3 X 1-1/2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

T1311214

3 X 1-1/2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

2.45 lb

Select a Size 0.00

Weight: 2.45 lb/ft

T1311211 3 X 1-1/2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

T1311211

3 X 1-1/2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

3.48 lb

Select a Size 0.00

Weight: 3.48 lb/ft

T13112316 3 X 1-1/2 X 3/16 wall
A500 Rectangle Steel Tube

T13112316

3 X 1-1/2 X 3/16 wall
A500 Rectangle Steel Tube

4.67 lb

Select a Size 0.00

Weight: 4.67 lb/ft

T13112250 3 X 1-1/2 X 1/4 wall
A500 Rectangle Steel Tube

T13112250

3 X 1-1/2 X 1/4 wall
A500 Rectangle Steel Tube

6.80 lb

Select a Size 0.00

Weight: 6.80 lb/ft

T132083 3 X 2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

T132083

3 X 2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

2.73 lb

Select a Size 0.00

Weight: 2.73 lb/ft

T13218 3 X 2 X 11GA (.120 wall)
A500 Rectangle Steel Tube

T13218

3 X 2 X 11GA (.120 wall)
A500 Rectangle Steel Tube

3.90 lb

Select a Size 0.00

Weight: 3.90 lb/ft

T132316 3 X 2 X 3/16 wall
A500 Rectangle Steel Tube

T132316

3 X 2 X 3/16 wall
A500 Rectangle Steel Tube

5.59 lb

Select a Size 0.00

Weight: 5.59 lb/ft

T13214 3 X 2 X 1/4 wall
A500 Rectangle Steel Tube

T13214

3 X 2 X 1/4 wall
A500 Rectangle Steel Tube

7.11 lb

Select a Size 0.00

Weight: 7.11 lb/ft

T1312112316 3-1/2 X 1-1/2 X 7GA (.180) wall
A500 Rectangle Steel Tube

T1312112316

3-1/2 X 1-1/2 X 7GA (.180) wall
A500 Rectangle Steel Tube

5.60 lb

Select a Size 0.00

Weight: 5.60 lb/ft

T1312212316 3-1/2 X 2-1/2 X 7GA (.180) wall
A500 Rectangle Steel Tube

T1312212316

3-1/2 X 2-1/2 X 7GA (.180) wall
A500 Rectangle Steel Tube

6.88 lb

Select a Size 0.00

Weight: 6.88 lb/ft

T1411211 4 X 1-1/2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

T1411211

4 X 1-1/2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

4.35 lb

Select a Size 0.00

Weight: 4.35 lb/ft

T14112316 4 X 1-1/2 X 3/16 wall
A500 Rectangle Steel Tube

T14112316

4 X 1-1/2 X 3/16 wall
A500 Rectangle Steel Tube

6.60 lb

Select a Size 0.00

Weight: 6.60 lb/ft

T14214GA 4 X 2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

T14214GA

4 X 2 X 14 GA (.083 wall)
A513 Rectangle Steel Tube

3.27 lb

Select a Size 0.00

Weight: 3.27 lb/ft

T14218 4 X 2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

T14218

4 X 2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

4.58 lb

Select a Size 0.00

Weight: 4.58 lb/ft

T142316 4 X 2 X 3/16 wall
A500 Rectangle Steel Tube

T142316

4 X 2 X 3/16 wall
A500 Rectangle Steel Tube

6.87 lb

Select a Size 0.00

Weight: 6.87 lb/ft

T14214 4 X 2 X 1/4 wall
A500 Rectangle Steel Tube

T14214

4 X 2 X 1/4 wall
A500 Rectangle Steel Tube

8.81 lb

Select a Size 0.00

Weight: 8.81 lb/ft

T14238 4 X 2 X 3/8 wall
A500 Rectangle Steel Tube

T14238

4 X 2 X 3/8 wall
A500 Rectangle Steel Tube

12.17 lb

Select a Size 0.00

Weight: 12.17 lb/ft

T1421211 4 X 2-1/2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

T1421211

4 X 2-1/2 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

5.18 lb

Select a Size 0.00

Weight: 5.18 lb/ft

T14318 4 X 3 X 11ga (.120)
A500 Rectangle Steel Tube

T14318

4 X 3 X 11ga (.120)
A500 Rectangle Steel Tube

5.61 lb

Select a Size 0.00

Weight: 5.61 lb/ft

T143316 4 X 3 X 3/16 wall
A500 Rectangle Steel Tube

T143316

4 X 3 X 3/16 wall
A500 Rectangle Steel Tube

8.15 lb

Select a Size 0.00

Weight: 8.15 lb/ft

T14314 4 X 3 X 1/4 wall
A500 Rectangle Steel Tube

T14314

4 X 3 X 1/4 wall
A500 Rectangle Steel Tube

10.51 lb

Select a Size 0.00

Weight: 10.51 lb/ft

T14338 4 X 3 X 3/8 wall
A500 Rectangle Steel Tube

T14338

4 X 3 X 3/8 wall
A500 Rectangle Steel Tube

14.71 lb

Select a Size 0.00

Weight: 14.71 lb/ft

T15211 5 X 2 X 11Ga (.120") wall
A513 Rectangle Steel Tube

T15211

5 X 2 X 11Ga (.120") wall
A513 Rectangle Steel Tube

5.65 lb

Select a Size 0.00

Weight: 5.65 lb/ft

T152316 5 X 2 X 3/16 wall
A500 Rectangle Steel Tube

T152316

5 X 2 X 3/16 wall
A500 Rectangle Steel Tube

8.15 lb

Select a Size 0.00

Weight: 8.15 lb/ft

T15214 5 X 2 X 1/4 wall
A500 Rectangle Steel Tube

T15214

5 X 2 X 1/4 wall
A500 Rectangle Steel Tube

10.41 lb

Select a Size 0.00

Weight: 10.41 lb/ft

T15311 5 X 3 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

T15311

5 X 3 X 11 GA (.120 wall)
A500 Rectangle Steel Tube

6.46 lb

Select a Size 0.00

Weight: 6.46 lb/ft

T153316 5 X 3 X 3/16 wall
A500 Rectangle Steel Tube

T153316

5 X 3 X 3/16 wall
A500 Rectangle Steel Tube

9.42 lb

Select a Size 0.00

Weight: 9.42 lb/ft

T15314 5 X 3 X 1/4 wall
A500 Rectangle Steel Tube

T15314

5 X 3 X 1/4 wall
A500 Rectangle Steel Tube

12.21 lb

Select a Size 0.00

Weight: 12.21 lb/ft

T15338 5 X 3 X 3/8 wall
A500 Rectangle Steel Tube

T15338

5 X 3 X 3/8 wall
A500 Rectangle Steel Tube

17.27 lb

Select a Size 0.00

Weight: 17.27 lb/ft

T16211 6 X 2 X 11Ga (.120 wall)
A500 Rectangle Steel Tube

T16211

6 X 2 X 11Ga (.120 wall)
A500 Rectangle Steel Tube

6.46 lb

Select a Size 0.00

Weight: 6.46 lb/ft

T162316 6 X 2 X 3/16 wall
A500 Rectangle Steel Tube

T162316

6 X 2 X 3/16 wall
A500 Rectangle Steel Tube

9.42 lb

Select a Size 0.00

Weight: 9.42 lb/ft

T16214 6 X 2 X 1/4 wall
A500 Rectangle Steel Tube

T16214

6 X 2 X 1/4 wall
A500 Rectangle Steel Tube

12.21 lb

Select a Size 0.00

Weight: 12.21 lb/ft

T16238 6 X 2 X 3/8 wall
A500 Rectangle Steel Tube

T16238

6 X 2 X 3/8 wall
A500 Rectangle Steel Tube

17.25 lb

Select a Size 0.00

Weight: 17.25 lb/ft

T16311 6 x 3 x 11Ga (.120 wall)
A500 Rectangle Steel Tube

T16311

6 x 3 x 11Ga (.120 wall)
A500 Rectangle Steel Tube

7.15 lb

Select a Size 0.00

Weight: 7.15 lb/ft

T163316 6 X 3 X 3/16 wall
A500 Rectangle Steel Tube

T163316

6 X 3 X 3/16 wall
A500 Rectangle Steel Tube

10.75 lb

Select a Size 0.00

Weight: 10.75 lb/ft

T16314 6 X 3 X 1/4 wall
A500 Rectangle Steel Tube

T16314

6 X 3 X 1/4 wall
A500 Rectangle Steel Tube

13.91 lb

Select a Size 0.00

Weight: 13.91 lb/ft

T16338 6 X 3 X 3/8 wall
A500 Rectangle Steel Tube

T16338

6 X 3 X 3/8 wall
A500 Rectangle Steel Tube

19.82 lb

Select a Size 0.00

Weight: 19.82 lb/ft

T16411 6 X 4 X 11ga (.120") wall
A500 Rectangle Steel Tube

T16411

6 X 4 X 11ga (.120") wall
A500 Rectangle Steel Tube

8.16 lb

Select a Size 0.00

Weight: 8.16 lb/ft

T164316 6 X 4 X 3/16 wall
A500 Rectangle Steel Tube

T164316

6 X 4 X 3/16 wall
A500 Rectangle Steel Tube

11.97 lb

Select a Size 0.00

Weight: 11.97 lb/ft

T16414 6 X 4 X 1/4 wall
A500 Rectangle Steel Tube

T16414

6 X 4 X 1/4 wall
A500 Rectangle Steel Tube

15.62 lb

Select a Size 0.00

Weight: 15.62 lb/ft

T16438 6 X 4 X 3/8 wall
A500 Rectangle Steel Tube

T16438

6 X 4 X 3/8 wall
A500 Rectangle Steel Tube

22.37 lb

Select a Size 0.00

Weight: 22.37 lb/ft

T16412 6 X 4 X 1/2 wall
A500 Rectangle Steel Tube

T16412

6 X 4 X 1/2 wall
A500 Rectangle Steel Tube

28.43 lb

Select a Size 0.00

Weight: 28.43 lb/ft

T18218 8 X 2 X 11Ga (.120 wall)
A500 Rectangle Steel Tube

T18218

8 X 2 X 11Ga (.120 wall)
A500 Rectangle Steel Tube

8.20 lb

Select a Size 0.00

Weight: 8.20 lb/ft

T182316 8 X 2 X 3/16 wall
A500 Rectangle Steel Tube

T182316

8 X 2 X 3/16 wall
A500 Rectangle Steel Tube

11.97 lb

Select a Size 0.00

Weight: 11.97 lb/ft

T18214 8 X 2 X 1/4 wall
A500 Rectangle Steel Tube

T18214

8 X 2 X 1/4 wall
A500 Rectangle Steel Tube

15.70 lb

Select a Size 0.00

Weight: 15.70 lb/ft

T18311 8 x 3 x 11GA (.125 wall)
A500 Rectangle Steel Tube

T18311

8 x 3 x 11GA (.125 wall)
A500 Rectangle Steel Tube

9.02 lb

Select a Size 0.00

Weight: 9.02 lb/ft

T183316 8 x 3 x 7 Ga (.188" wall)
A500 Rectangle Steel Tube

T183316

8 x 3 x 7 Ga (.188" wall)
A500 Rectangle Steel Tube

13.25 lb

Select a Size 0.00

Weight: 13.25 lb/ft

T18314 8 x 3 x 1/4 wall
A500 Rectangle Steel Tube

T18314

8 x 3 x 1/4 wall
A500 Rectangle Steel Tube

17.32 lb

Select a Size 0.00

Weight: 17.32 lb/ft

T184316 8 x 4 x 3/16 wall
A500 Rectangle Steel Tube

T184316

8 x 4 x 3/16 wall
A500 Rectangle Steel Tube

14.53 lb

Select a Size 0.00

Weight: 14.53 lb/ft

T18414 8 x 4 x 1/4 wall
A500 Rectangle Steel Tube

T18414

8 x 4 x 1/4 wall
A500 Rectangle Steel Tube

19.20 lb

Select a Size 0.00

Weight: 19.20 lb/ft

T18438 8 x 4 x 3/8 wall
A500 Rectangle Steel Tube

T18438

8 x 4 x 3/8 wall
A500 Rectangle Steel Tube

27.48 lb

Select a Size 0.00

Weight: 27.48 lb/ft

T18412 8 x 4 x 1/2 wall
A500 Rectangle Steel Tube

T18412

8 x 4 x 1/2 wall
A500 Rectangle Steel Tube

35.24 lb

Select a Size 0.00

Weight: 35.24 lb/ft

T186316 8 X 6 X 3/16 wall
A500 Rectangle Steel Tube

T186316

8 X 6 X 3/16 wall
A500 Rectangle Steel Tube

17.08 lb

Select a Size 0.00

Weight: 17.08 lb/ft

T1102316 10 x 2 x 3/16 wall
A500 Rectangle Steel Tube

T1102316

10 x 2 x 3/16 wall
A500 Rectangle Steel Tube

14.53 lb

Select a Size 0.00

Weight: 14.53 lb/ft

T110214 10 x 2 x 1/4 wall
A500 Rectangle Steel Tube

T110214

10 x 2 x 1/4 wall
A500 Rectangle Steel Tube

19.02 lb

Select a Size 0.00

Weight: 19.02 lb/ft

T110311 10 x 3 x 11GA (.120" wall)
A500 Rectangle Steel Tube

T110311

10 x 3 x 11GA (.120" wall)
A500 Rectangle Steel Tube

10.71 lb

Select a Size 0.00

Weight: 10.71 lb/ft

T110414 10 x 4 x 1/4 wall
A500 Rectangle Steel Tube

T110414

10 x 4 x 1/4 wall
A500 Rectangle Steel Tube

22.42 lb

Select a Size 0.00

Weight: 22.42 lb/ft

T112214 12 x 2 x 1/4 wall
A500 Rectangle Steel Tube

T112214

12 x 2 x 1/4 wall
A500 Rectangle Steel Tube

22.46 lb

Select a Size 0.00

Weight: 22.46 lb/ft

T112414 12 x 4 x 1/4 wall
A500 Rectangle Steel Tube

T112414

12 x 4 x 1/4 wall
A500 Rectangle Steel Tube

25.82 lb

Select a Size 0.00

Weight: 25.82 lb/ft

T112614 12 x 6 x 1/4 wall
A500 Rectangle Steel Tube

T112614

12 x 6 x 1/4 wall
A500 Rectangle Steel Tube

29.23 lb

Select a Size 0.00

Weight: 29.23 lb/ft
