Aluminum Channel - 6061

Aluminum Channel - 6061

6061 Aluminum Channel, aka Structural Aluminum "C" Channel is an extruded aluminum product with inside radius corners that is intended for all structural applications where greater strength is required. 6061 Aluminum Channel is widely used for all types of fabrication projects where lightweight and corrosion resistance is a concern - frame work, braces, supports, trailers, truck beds, etc. Metals Depot stocks hundreds of sizes of aluminum channel that you can buy online in ready to ship precut or mill lengths or order just what you need custom Cut to Size in small or large quantity at wholesale prices. Available in (AA) Aluminum Association and (AS) American Standard profiles. Provided in raw mill finish, not intended for cosmetic applications.

Need 6063 Sharp Corner Channel? Click Here

About

SPECIFICATIONS:

6061-T6; ASTM B308; AMS-QQ-A-200/8

FINISH:

Extruded Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 45 ksi; Yield Point = 40 ksi
Shear Strength = 30 ksi; Elasticity = 10 ksi
Elongation in 2" = 17%; Fatigue Limit = 14 ksi
Brinell Hardness = 95; Melting Point = 1220F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 12ft, 25ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

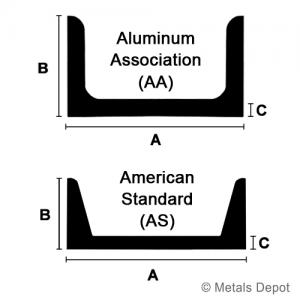

HOW TO MEASURE:

Width (A) X Flange (B) X Web (C) X Length
* Dimensions in Inches

About

SPECIFICATIONS:

6061-T6; ASTM B308; AMS-QQ-A-200/8

FINISH:

Extruded Mill Finish, Not Polished

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 45 ksi; Yield Point = 40 ksi
Shear Strength = 30 ksi; Elasticity = 10 ksi
Elongation in 2" = 17%; Fatigue Limit = 14 ksi
Brinell Hardness = 95; Melting Point = 1220F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 12ft, 25ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Width (A) X Flange (B) X Web (C) X Length
* Dimensions in Inches

California Residents Warning!

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock Number

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

C321125 2 x 1 x .125 web
6061-T6 Aluminum Channel (AS)

C321125

2 x 1 x .125 web
6061-T6 Aluminum Channel (AS)

0.57 lb

Select a Size 0.00

Weight: 0.57 lb/ft

C32130 2 x 1 x .130 web
6061-T6 Aluminum Channel (AA)

C32130

2 x 1 x .130 web
6061-T6 Aluminum Channel (AA)

0.55 lb

Select a Size 0.00

Weight: 0.55 lb/ft

C32170 2 X 1.25 X .170 web
6061-T6 Aluminum Channel (AA)

C32170

2 X 1.25 X .170 web
6061-T6 Aluminum Channel (AA)

1.08 lb

Select a Size 0.00

Weight: 1.08 lb/ft

C32218-6061 2 X 2 X .125 web
6061-T6 Aluminum Channel (sharp corner)

C32218-6061

2 X 2 X .125 web
6061-T6 Aluminum Channel (sharp corner)

0.85 lb

Select a Size 0.00

Weight: 0.85 lb/ft

C33130 3 X 1.50 X .130 web
6061-T6 Aluminum Channel (AA)

C33130

3 X 1.50 X .130 web
6061-T6 Aluminum Channel (AA)

1.14 lb

Select a Size 0.00

Weight: 1.14 lb/ft

C3315 3 X 1.41 X .170 web
6061-T6 Aluminum Channel (AS)

C3315

3 X 1.41 X .170 web
6061-T6 Aluminum Channel (AS)

1.42 lb

Select a Size 0.00

Weight: 1.42 lb/ft

C33134170 3 X 1.75 X .170 web
6061-T6 Aluminum Channel (AA)

C33134170

3 X 1.75 X .170 web
6061-T6 Aluminum Channel (AA)

1.60 lb

Select a Size 0.00

Weight: 1.60 lb/ft

C33258 3 X 1.498 X .258 web
6061-T6 Aluminum Channel (AS)

C33258

3 X 1.498 X .258 web
6061-T6 Aluminum Channel (AS)

1.80 lb

Select a Size 0.00

Weight: 1.80 lb/ft

C33356 3 X 1.596 X .356 web
6061-T6 Aluminum Channel (AS)

C33356

3 X 1.596 X .356 web
6061-T6 Aluminum Channel (AS)

2.08 lb

Select a Size 0.00

Weight: 2.08 lb/ft

C34150 4 X 2 X .150 web
6061-T6 Aluminum Channel (AA)

C34150

4 X 2 X .150 web
6061-T6 Aluminum Channel (AA)

1.80 lb

Select a Size 0.00

Weight: 1.80 lb/ft

C34180 4 X 1.58 X .180 web
6061-T6 Aluminum Channel (AS)

C34180

4 X 1.58 X .180 web
6061-T6 Aluminum Channel (AS)

1.85 lb

Select a Size 0.00

Weight: 1.85 lb/ft

C34190 4 X 2.25 X .190 web
6061-T6 Aluminum Channel (AA)

C34190

4 X 2.25 X .190 web
6061-T6 Aluminum Channel (AA)

2.32 lb

Select a Size 0.00

Weight: 2.32 lb/ft

C34247 4 X 1.647 X .247 web
6061-T6 Aluminum Channel (AS)

C34247

4 X 1.647 X .247 web
6061-T6 Aluminum Channel (AS)

2.16 lb

Select a Size 0.00

Weight: 2.16 lb/ft

C34320 4 X 1.72 X .320 web
6061-T6 Aluminum Channel (AS)

C34320

4 X 1.72 X .320 web
6061-T6 Aluminum Channel (AS)

2.52 lb

Select a Size 0.00

Weight: 2.52 lb/ft

C35150 5 X 2.25 X .150 web
6061-T6 Aluminum Channel (AA)

C35150

5 X 2.25 X .150 web
6061-T6 Aluminum Channel (AA)

2.20 lb

Select a Size 0.00

Weight: 2.20 lb/ft

C35190 5 X 1.75 X .190 web
6061-T6 Aluminum Channel (AS)

C35190

5 X 1.75 X .190 web
6061-T6 Aluminum Channel (AS)

2.32 lb

Select a Size 0.00

Weight: 2.32 lb/ft

C35275190 5 X 2.75 X .190 web
6061-T6 Aluminum Channel (AA)

C35275190

5 X 2.75 X .190 web
6061-T6 Aluminum Channel (AA)

3.08 lb

Select a Size 0.00

Weight: 3.08 lb/ft

C35325 5 X 1.885 X .325 web
6061-T6 Aluminum Channel (AS)

C35325

5 X 1.885 X .325 web
6061-T6 Aluminum Channel (AS)

3.12 lb

Select a Size 0.00

Weight: 3.12 lb/ft

C35472 5 X 2.032 X .472 web
6061-T6 Aluminum Channel (AS)

C35472

5 X 2.032 X .472 web
6061-T6 Aluminum Channel (AS)

3.96 lb

Select a Size 0.00

Weight: 3.96 lb/ft

C36200 6 X 1.92 X .200 web
6061-T6 Aluminum Channel (AS)

C36200

6 X 1.92 X .200 web
6061-T6 Aluminum Channel (AS)

2.84 lb

Select a Size 0.00

Weight: 2.84 lb/ft

C36210 6 X 3.25 X .210 web
6061-T6 Aluminum Channel (AA)

C36210

6 X 3.25 X .210 web
6061-T6 Aluminum Channel (AA)

4.04 lb

Select a Size 0.00

Weight: 4.04 lb/ft

C36225 6 X 1.945 X .225 web
6061-T6 Aluminum Channel (AS)

C36225

6 X 1.945 X .225 web
6061-T6 Aluminum Channel (AS)

2.83 lb

Select a Size 0.00

Weight: 2.83 lb/ft

C36314 6 X 2.034 X .314 web
6061-T6 Aluminum Channel (AS)

C36314

6 X 2.034 X .314 web
6061-T6 Aluminum Channel (AS)

3.63 lb

Select a Size 0.00

Weight: 3.63 lb/ft

C36250170 6 X 2.50 X .170 web
6061-T6 Aluminum Channel (AA)

C36250170

6 X 2.50 X .170 web
6061-T6 Aluminum Channel (AA)

2.85 lb

Select a Size 0.00

Weight: 2.85 lb/ft

C36438 6 X 2.157 X .438 web
6061-T6 Aluminum Channel (AS)

C36438

6 X 2.157 X .438 web
6061-T6 Aluminum Channel (AS)

4.52 lb

Select a Size 0.00

Weight: 4.52 lb/ft

C37170 7 X 2.75 X .170 web
6061-T6 Aluminum Channel (AA)

C37170

7 X 2.75 X .170 web
6061-T6 Aluminum Channel (AA)

3.20 lb

Select a Size 0.00

Weight: 3.20 lb/ft

C37210 7 X 3.50 X .210 web
6061-T6 Aluminum Channel (AA)

C37210

7 X 3.50 X .210 web
6061-T6 Aluminum Channel (AA)

4.72 lb

Select a Size 0.00

Weight: 4.72 lb/ft

C37230 7 x 2.11 x .230 web
6061-T6 Aluminum Channel (AS)

C37230

7 x 2.11 x .230 web
6061-T6 Aluminum Channel (AS)

3.55 lb

Select a Size 0.00

Weight: 3.55 lb/ft

C383190 8 x 3 x .190 web
6061-T6 Aluminum Channel (AA)

C383190

8 x 3 x .190 web
6061-T6 Aluminum Channel (AA)

4.15 lb

Select a Size 0.00

Weight: 4.15 lb/ft

C38250 8 x 2.29 x .250 web
6061-T6 Aluminum Channel (AS)

C38250

8 x 2.29 x .250 web
6061-T6 Aluminum Channel (AS)

4.26 lb

Select a Size 0.00

Weight: 4.26 lb/ft

C38375250 8 X 3.75 X .250 web
6061-T6 Aluminum Channel (AA)

C38375250

8 X 3.75 X .250 web
6061-T6 Aluminum Channel (AA)

5.80 lb

Select a Size 0.00

Weight: 5.80 lb/ft

C38487 8 X 2.527 X .487 web
6061-T6 Aluminum Channel (AS)

C38487

8 X 2.527 X .487 web
6061-T6 Aluminum Channel (AS)

6.48 lb

Select a Size 0.00

Weight: 6.48 lb/ft

C39230 9 X 3.25 X .230 web
6061-T6 Aluminum Channel (AA)

C39230

9 X 3.25 X .230 web
6061-T6 Aluminum Channel (AA)

5.80 lb

Select a Size 0.00

Weight: 5.80 lb/ft

C39290 9 X 4.00 X .290 web
6061-T6 Aluminum Channel (AA)

C39290

9 X 4.00 X .290 web
6061-T6 Aluminum Channel (AA)

6.96 lb

Select a Size 0.00

Weight: 6.96 lb/ft

C310240 10 X 2.60 X .240 web
6061-T6 Aluminum Channel (AS)

C310240

10 X 2.60 X .240 web
6061-T6 Aluminum Channel (AS)

5.28 lb

Select a Size 0.00

Weight: 5.28 lb/ft

C310250 10 X 3.50 X .250 web
6061-T6 Aluminum Channel (AA)

C310250

10 X 3.50 X .250 web
6061-T6 Aluminum Channel (AA)

6.20 lb

Select a Size 0.00

Weight: 6.20 lb/ft

C310425310 10 X 4.25 X .310 web
6061-T6 Aluminum Channel (AA)

C310425310

10 X 4.25 X .310 web
6061-T6 Aluminum Channel (AA)

8.50 lb

Select a Size 0.00

Weight: 8.50 lb/ft

C310526 10 X 2.88 X .526 web
6061-T6 Aluminum Channel (AS)

C310526

10 X 2.88 X .526 web
6061-T6 Aluminum Channel (AS)

8.68 lb

Select a Size 0.00

Weight: 8.68 lb/ft

C312290 12 X 4 X .290 web
6061-T6 Aluminum Channel (AA)

C312290

12 X 4 X .290 web
6061-T6 Aluminum Channel (AA)

8.30 lb

Select a Size 0.00

Weight: 8.30 lb/ft

C312300 12 X 2.96 X .300 web
6061-T6 Aluminum Channel (AS)

C312300

12 X 2.96 X .300 web
6061-T6 Aluminum Channel (AS)

7.50 lb

Select a Size 0.00

Weight: 7.50 lb/ft

C312350 12 X 5.00 X .350 web
6061-T6 Aluminum Channel (AA)

C312350

12 X 5.00 X .350 web
6061-T6 Aluminum Channel (AA)

11.84 lb

Select a Size 0.00

Weight: 11.84 lb/ft

C312510 12 X 3.17 X .510 web
6061-T6 Aluminum Channel (AS)

C312510

12 X 3.17 X .510 web
6061-T6 Aluminum Channel (AS)

10.36 lb

Select a Size 0.00

Weight: 10.36 lb/ft
