6063 Aluminum Channel - Sharp Corner

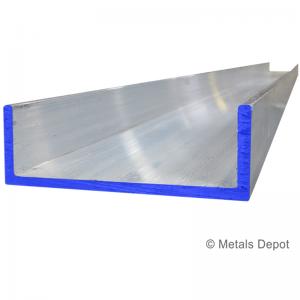

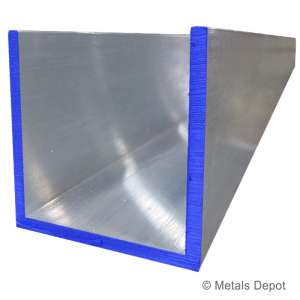

6063 Aluminum Channel, aka Architectural Aluminum Trim Channel is an extruded aluminum product with sharp, right angle inside and outside corners making this shape ideal for many trim applications. 6063 Aluminum Channel is also widely used for all types of fabrication projects where lightweight and corrosion resistance is a primary concern. Commonly used for frame work, brackets, interior & exterior architectural trim, etc. Metals Depot stocks hundreds of sizes of 6063 channels that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size in small or large quantity at wholesale prices. Provided in raw mill finish, not polished for cosmetic applications. Industrial grade aluminum may have some minor scuffs / scratches.

Need 6061 Structural Channel? Click Here

About

SPECIFICATIONS:

6063-T52; ASTM B221; AMS-QQ-A-200/9

FINISH:

Extruded Mill Finish, Not Polished, Shiny

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Poor
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 27 ksi; Yield Point = 21 ksi
Shear Strength = 17 ksi; Elasticity = 10 ksi
Elongation in 2" = 18%; Fatigue Limit = 10 ksi
Brinell Hardness = 60; Melting Point = 1220F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 16ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

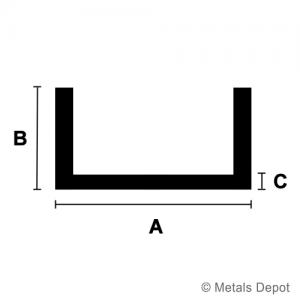

HOW TO MEASURE:

Width (A) X Flange (B) X Web (C) X Length
* Dimensions in Inches

About

SPECIFICATIONS:

6063-T52; ASTM B221; AMS-QQ-A-200/9

FINISH:

Extruded Mill Finish, Not Polished, Shiny

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Good
Wear Resistance = Poor
Corrosion Resistance = Good

MECHANICAL PROPERTIES:

Tensile Strength = 27 ksi; Yield Point = 21 ksi
Shear Strength = 17 ksi; Elasticity = 10 ksi
Elongation in 2" = 18%; Fatigue Limit = 10 ksi
Brinell Hardness = 60; Melting Point = 1220F
*Data provided for reference only

AVAILABLE LENGTHS:

2ft, 4ft, 6ft, 8ft, 16ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

HOW TO MEASURE:

Width (A) X Flange (B) X Web (C) X Length
* Dimensions in Inches

California Residents Warning!

Filter By:

Product / Size / Weight / Stock

Product / Size / Weight / Stock
Select Size & Quantity to Add to Cart

Stock #

Item Size & Description

Weight / Ft.

Select Size

QTY

Price

Add to Cart

C312332 1/2" X 1/2" X 1/16" (3/8" inside)
6063-T52 Aluminum Channel (Sharp Corner)

C312332

1/2" X 1/2" X 1/16" (3/8" inside)
6063-T52 Aluminum Channel (Sharp Corner)

0.15 lb/ft

Select a Size 0.00

Weight: 0.15 lb/ft

C3123418 1/2" x 3/4" leg x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C3123418

1/2" x 3/4" leg x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.27 lb/ft

Select a Size 0.00

Weight: 0.27 lb/ft

C35818 5/8" X 5/8" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C35818

5/8" X 5/8" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.40 lb/ft

Select a Size 0.00

Weight: 0.40 lb/ft

C3343818 3/4" x 3/8" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C3343818

3/4" x 3/8" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.19 lb/ft

Select a Size 0.00

Weight: 0.19 lb/ft

C3343418 3/4" X 3/4" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C3343418

3/4" X 3/4" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.30 lb/ft

Select a Size 0.00

Weight: 0.30 lb/ft

C31-1218 1" X 1/2" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C31-1218

1" X 1/2" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.26 lb/ft

Select a Size 0.00

Weight: 0.26 lb/ft

C31118 1" X 1" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C31118

1" X 1" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.41 lb/ft

Select a Size 0.00

Weight: 0.41 lb/ft

C31218 1" X 2" leg X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C31218

1" X 2" leg X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.80 lb/ft

Select a Size 0.00

Weight: 0.80 lb/ft

C311418-6063 1-1/4" X 1-1/4" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C311418-6063

1-1/4" X 1-1/4" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.52 lb/ft

Select a Size 0.00

Weight: 0.52 lb/ft

C31121218 1-1/2" x 1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C31121218

1-1/2" x 1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.35 lb/ft

Select a Size 0.00

Weight: 0.35 lb/ft

C31123418 1-1/2" x 3/4" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C31123418

1-1/2" x 3/4" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.45 lb/ft

Select a Size 0.00

Weight: 0.45 lb/ft

C3112118 1-1/2" x 1" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C3112118

1-1/2" x 1" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.49 lb/ft

Select a Size 0.00

Weight: 0.49 lb/ft

C311218 1-1/2" x 1-1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C311218

1-1/2" x 1-1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.65 lb/ft

Select a Size 0.00

Weight: 0.65 lb/ft

C3134118 1-3/4" X 1" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C3134118

1-3/4" X 1" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.50 lb/ft

Select a Size 0.00

Weight: 0.50 lb/ft

C321218 2" x 1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C321218

2" x 1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.40 lb/ft

Select a Size 0.00

Weight: 0.40 lb/ft

C321 2" X 1" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C321

2" X 1" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.56 lb/ft

Select a Size 0.00

Weight: 0.56 lb/ft

C32218 2" X 2" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C32218

2" X 2" X 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

1.00 lb/ft

Select a Size 0.00

Weight: 1.00 lb/ft

C32214 2" x 2" x 1/4"
6063-T52 Aluminum Channel (Sharp Corner)

C32214

2" x 2" x 1/4"
6063-T52 Aluminum Channel (Sharp Corner)

1.63 lb/ft

Select a Size 0.00

Weight: 1.63 lb/ft

C321211218 2-1/2" x 1-1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C321211218

2-1/2" x 1-1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.80 lb/ft

Select a Size 0.00

Weight: 0.80 lb/ft

C331218 3" x 1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C331218

3" x 1/2" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.55 lb/ft

Select a Size 0.00

Weight: 0.55 lb/ft

C33118 3" x 1" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

C33118

3" x 1" x 1/8"
6063-T52 Aluminum Channel (Sharp Corner)

0.75 lb/ft

Select a Size 0.00

Weight: 0.75 lb/ft

C33112188 3" x 1-1/2" x 3/16"
6063-T52 Aluminum Channel (Sharp Corner)

C33112188

3" x 1-1/2" x 3/16"
6063-T52 Aluminum Channel (Sharp Corner)

1.25 lb/ft

Select a Size 0.00

Weight: 1.25 lb/ft

C352316 5" x 2" x 3/16"
6063-T52 Aluminum Channel (Sharp Corner)

C352316

5" x 2" x 3/16"
6063-T52 Aluminum Channel (Sharp Corner)

1.94 lb/ft

Select a Size 0.00

Weight: 1.94 lb/ft
