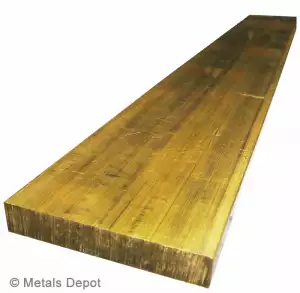

360 Brass Flat Rectangle

About

SPECIFICATIONS:
C36000, CDA 360, ASTM B16, AMS 4610

FINISH:
Standard Mill Finish, Not Polished

CHARACTERISTICS:
Brazing = Good
Machining / Grinding = Excellent
Bending / Forming = Good
Wear Resistance = Fair
Corrosion Resistance = Good

MECHANICAL PROPERTIES:
Tensile Strength = 58 ksi; Yield Point = 45 ksi
Temper = 1/2 hard; Elasticity = 14,000 ksi
Elongation in 2" = 25%; Machinability = 100%
Rockwell = HRB78; Melting Point = 1630F
*Data provided for reference only

AVAILABLE LENGTHS:
1ft, 2ft, 4ft, 6ft, 12ft or Custom Cut
Standard Length Tolerance = +/- 1/4"
Custom Cut Tolerance = +/- 1/16"

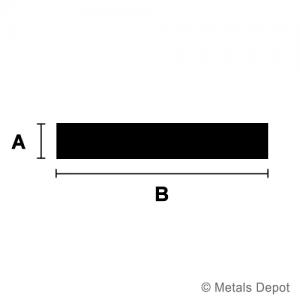

HOW TO MEASURE:
Thickness (A) X Width (B) X Length
* Dimensions in Inches





Tolerances


Thickness Tolerance for 360 Brass Flat
1/16" to 1/8" = .003" +/- max
over 1/8" to 3/16" = .004" +/- max
over 3/16" to 2" = .008" +/- max
over 2" = 30% +/- max

Width Tolerance for 360 Brass Flat
1/4" to 1/2" = .0035" +/-
over 1/2" to 1-1/4" = .005" +/-
over 1-1/4" to 2" = .008" +/-
over 2" to 4" = .012" +/-
over 4" to 12" = 30% +/-

Straightness Tolerance for 360 Brass Flat
1/2" maximum bow edgewise curvature (depth arc) in any 6ft portion of the total length

Chemistry


Typical Chemistry for 360 Brass Flat

Copper = 61.5%
Iron = .35% max
Lead = 3.1%
Zinc = 35.4%

Applications


Applications of 360 Brass Flat

machined parts, fixtures, jigs, molds, bases, molding, trim, marine parts, thermostat parts,
latches, gauges, and much more

* Sold in standard mill finish and not intended for cosmetic applications
but can be polished to desired luster with relative ease.

Select Size & Quantity to Add to Cart
BRF11612 1/16 X 1/2
260 Brass Strip Flat
Add To Cart
BRF11634 1/16 X 3/4
260 Brass Strip Flat
Add To Cart
BRF1161 1/16 X 1
260 Brass Strip Flat
Add To Cart
BRF116112 1/16 X 1-1/2
260 Brass Strip Flat
Add To Cart
BRF1162 1/16 X 2
260 Brass Strip Flat
Add To Cart
BF1814 1/8 X 1/4
360 Brass Flat
Add To Cart
BRF1838 1/8 X 3/8
360 Brass Flat
Add To Cart
BR1812 1/8 X 1/2
360 Brass Flat
Add To Cart
BRF1858 1/8 X 5/8
360 Brass Flat
Add To Cart
BR1834 1/8 X 3/4
360 Brass Flat
Add To Cart
BR181 1/8 X 1
360 Brass Flat
Add To Cart
BRF18112 1/8 X 1-1/2
360 Brass Flat
Add To Cart
BR182 1/8 X 2
360 Brass Flat
Add To Cart
BRF18212 1/8 X 2-1/2
360 Brass Flat
Add To Cart
BR183 1/8 X 3
360 Brass Flat
Add To Cart
BF1438 1/4 X 3/8
360 Brass Flat
Add To Cart
BR1412 1/4 X 1/2
360 Brass Flat
Add To Cart
BR1434 1/4 X 3/4
360 Brass Flat
Add To Cart
BR141 1/4 X 1
360 Brass Flat
Add To Cart
BRF14114 1/4 X 1-1/4
360 Brass Flat
Add To Cart
BR14112 1/4 X 1-1/2
360 Brass Flat
Add To Cart
BR142 1/4 X 2
360 Brass Flat
Add To Cart
BRF14212 1/4 X 2-1/2
360 Brass Flat
Add To Cart
BRF143 1/4 X 3
360 Brass Flat
Add To Cart
BRF144 1/4 X 4
360 Brass Flat
Add To Cart
BF3834 3/8 X 3/4
360 Brass Flat
Add To Cart
BRF381 3/8 X 1
360 Brass Flat
Add To Cart
BR38112 3/8 X 1-1/2
360 Brass Flat
Add To Cart
BF382 3/8 X 2
360 Brass Flat
Add To Cart
BRF38212 3/8 X 2-1/2
360 Brass Flat
Add To Cart
BF383 3/8 X 3
360 Brass Flat
Add To Cart
BF384 3/8 X 4
360 Brass Flat
Add To Cart
BF1234 1/2 X 3/4
360 Brass Flat
Add To Cart
BRF121 1/2 X 1
360 Brass Flat
Add To Cart
BRF12112 1/2 X 1-1/2
360 Brass Flat
Add To Cart
BRF122 1/2 X 2
360 Brass Flat
Add To Cart
BF12212 1/2 X 2-1/2
360 Brass Flat
Add To Cart
BRF123 1/2 X 3
360 Brass Flat
Add To Cart
BF124 1/2 X 4
360 Brass Flat
Add To Cart
BRF341 3/4 X 1
360 Brass Flat
Add To Cart
BRF342 3/4 X 2
360 Brass Flat
Add To Cart
BRF34212 3/4 X 2-1/2
360 Brass Flat
Add To Cart
BF343 3/4 X 3
360 Brass Flat
Add To Cart
BF1112 1 X 1-1/2
360 Brass Flat
Add To Cart
BF12 1 X 2
360 Brass Flat
Add To Cart
BR13 1 X 3
360 Brass Flat
Add To Cart
